1200 Series 3-Roll & 5-Roll Tube Expanders
The most versatile tube expanders for thick tubesheets. Four reach lengths roll tubes up to 12-3/4" deep, with custom lengths to 60" and longer on request. For tubes 1/2" to 1-1/2" OD, in 3-roll or 5-roll. Find your part number ›
Get a Quote or Order
Send us these details and we'll respond the same business day.
- 3-roll or 5-roll
- Tube OD and BWG (gauge)
- Tubesheet thickness (roll depth and reach)
- Complete tool, mandrel, or roll set
- Quantity and date needed
| Specification | Details |
|---|---|
| Expander Types | 3-Roll • 5-Roll |
| 3-Roll Tube Sizes | 1/2" 14 BWG – 1-1/2" 20 BWG (Tube ID 0.334" – 1.43", 8.4 – 36.3 mm) |
| 5-Roll Tube Sizes | 3/4" 14 BWG – 1-1/2" 20 BWG (Tube ID 0.584" – 1.43", 14.8 – 36.3 mm) |
| Roller Lengths | 1-1/2" • 2-1/4" |
| Reach Options | STD • A • B • C (custom to 60" and longer) |
| Max Roll Depth | 12" with 1-1/2" rollers • 12-3/4" with 2-1/4" rollers |
| 3-Roll Drives | 1197 – 1256: 3/8" mandrel drive • 1257 – 1300: 1/2" square |
| 5-Roll Drives | 1223-5 – 1258-5: 3/8" square • 1263-5 – 1300-5: 1/2" square |
| Order As | Complete tool • Mandrel • Roll set |
3-Roll vs. 5-Roll
Both are built for thick tubesheets. The 5-roll is ideally suited to thin wall tubes of titanium, stainless steel, Incoloy, and other exotic metals, giving a more concentric and even expansion than a conventional 3-roll expander.

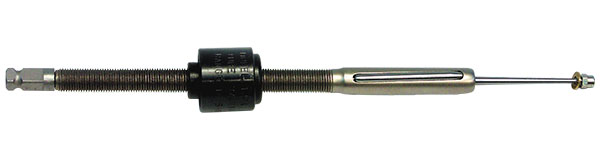

1200 Series 3-Roll

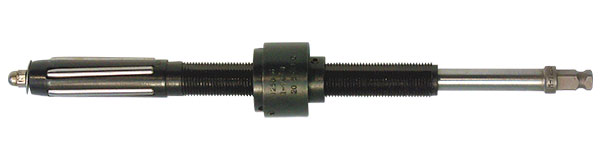

1200 Series 5-Roll
Choose Your Reach
Roll depth is how far into the tubesheet the tube is expanded. Every reach starts at the roller length (min "A") and extends to the max "B" below. Longer lengths, to 60" and beyond, are available on request.
| Reach | 1-1/2" Rollers | 2-1/4" Rollers |
|---|---|---|
| STD | 1-1/2" – 6" | 2-1/4" – 6-3/4" |
| A | 1-1/2" – 8" | 2-1/4" – 8-3/4" |
| B | 1-1/2" – 10" | 2-1/4" – 10-3/4" |
| C | 1-1/2" – 12" | 2-1/4" – 12-3/4" |

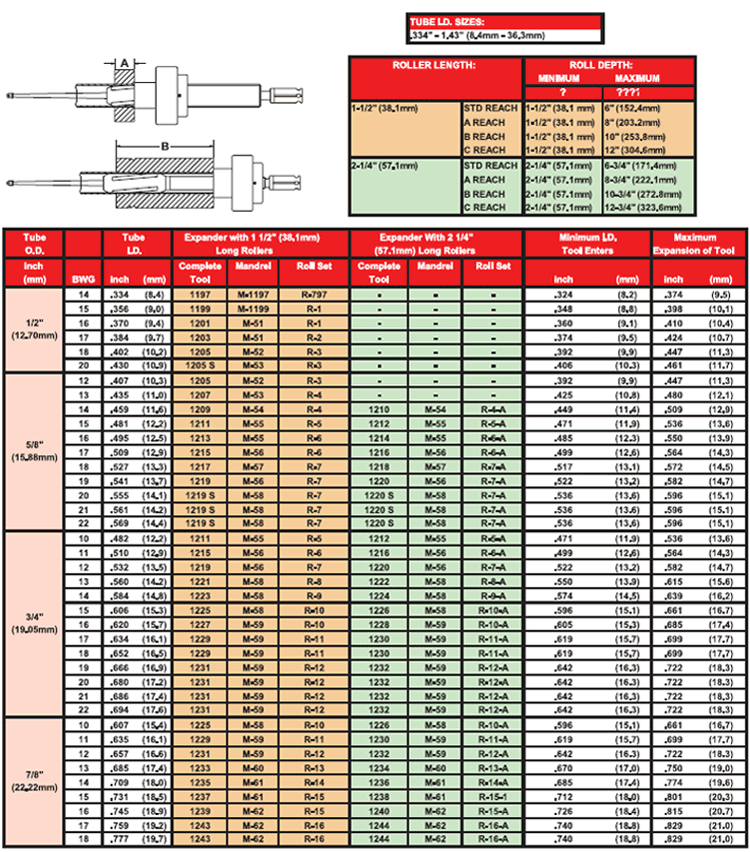

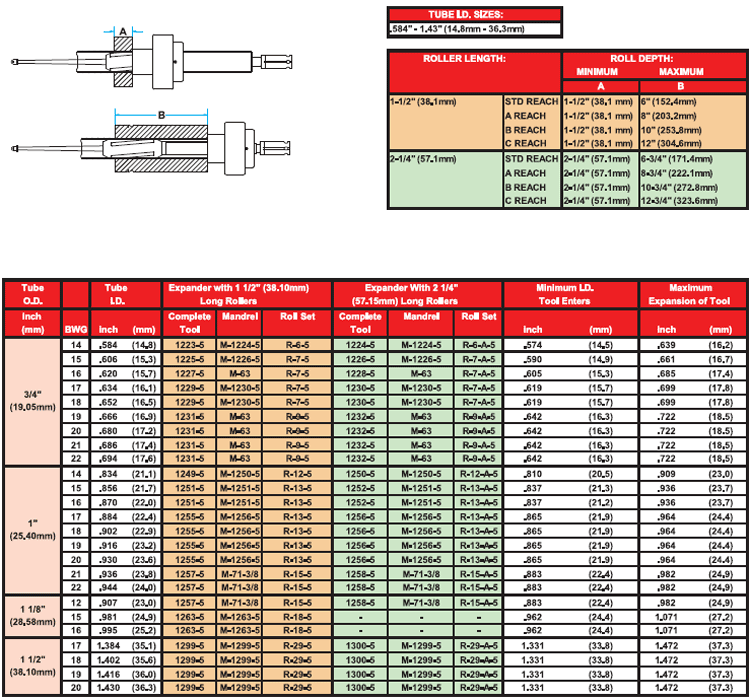

1200 Series Sizing Charts
Find your tube OD and BWG, then read across for the complete tool, mandrel, and roll set part numbers.
Click any chart to open it full size.
1200 Series Tube Expander FAQ
What makes the 1200 Series different from the 800 Series?
Reach. The 1200 Series comes in four reach lengths, rolling up to 12" deep with 1-1/2" rollers and 12-3/4" with 2-1/4" rollers, with custom lengths to 60" and longer. That makes it the choice for thick tubesheets. See the 800 Series for standard depths.
When should I use the 5-roll instead of the 3-roll?
For thin wall tubes of titanium, stainless steel, Incoloy, and other exotic metals. Five rolls give a more concentric and even expansion than a conventional 3-roll expander.
What tube sizes do they fit?
The 3-roll fits 1/2" 14 BWG to 1-1/2" 20 BWG (0.334" to 1.43" ID). The 5-roll fits 3/4" 14 BWG to 1-1/2" 20 BWG (0.584" to 1.43" ID).
Which reach do I need?
Pick the reach whose max roll depth covers your tubesheet thickness: STD to 6", A to 8", B to 10", or C to 12" with 1-1/2" rollers. Add 3/4" to each with 2-1/4" rollers.
What mandrel drive do they use?
3-roll models 1197 to 1256 use a 3/8" mandrel drive and 1257 to 1300 use a 1/2" square drive. 5-roll models 1223-5 to 1258-5 use a 3/8" square drive and 1263-5 to 1300-5 use a 1/2" square drive.
Can I buy mandrels and roll sets separately?
Yes. Every size in the charts lists a complete tool, mandrel, and roll set part number.
