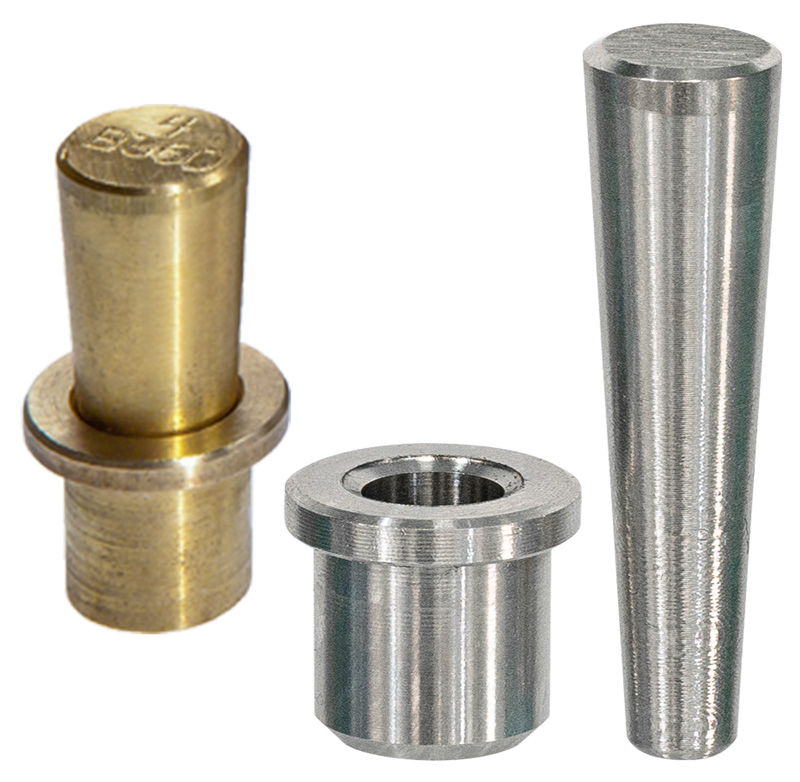

Two-Piece Metal Tapered Plugs
A tapered pin drives into a parallel outer ring for an even 360° seal along the full length of the ring. You get a better seal than a one-piece plug, with less risk to expensive tube sheets. Every ring is turned to your tube's exact I.D.
Get a Quote or Order
Call (800) 456-8721 or send us these details and we'll respond the same business day.
- Tube OD (see the sizing chart)
- Exact tube I.D. (required, we turn the ring to fit)
- Pin and ring material, ideally matched to your tube
- Quantity needed
- Date needed
See Snap It® Engineered Tube Plugs ›
| Specification | Details |
|---|---|
| Design | Tapered pin (TP-#) • Parallel outer ring (TPR-#) |
| Seal | 360° expansion along the full length of the ring |
| Tube ODs | 3/8" through 2" |
| Pin Sizes | TP-1 through TP-14 |
| Ring Fit | Turned to your exact tube I.D. (+/- .005") |
| Materials | 20+ metals (brass, carbon steel, 304/316/416 stainless, aluminum) |
| Coatings | Custom coatings on request |
| Customization | Ring and pin length on request |
| Ordering | Pin and ring ordered together (custom fit, non-returnable) |
| Delivery | In-stock items ship within 24 hours |
Why Two-Piece Plugs

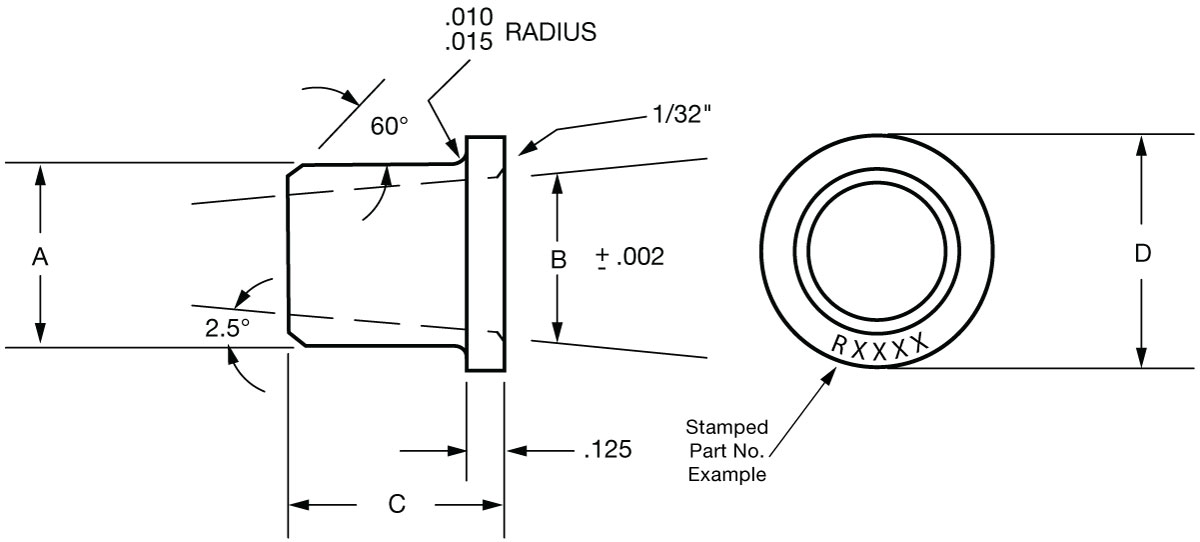

Two-Piece Tube Plug Sizes
| Two-Piece Metal Tapered Tube Plugs | |||
|---|---|---|---|
| Tube O.D. (in.) | Tube I.D. Range (in.) | Pin Size | Ring Size |
FIN-FAN is a Registered Trademark of Hudson Products Corporation.
Easy & Quick to Install

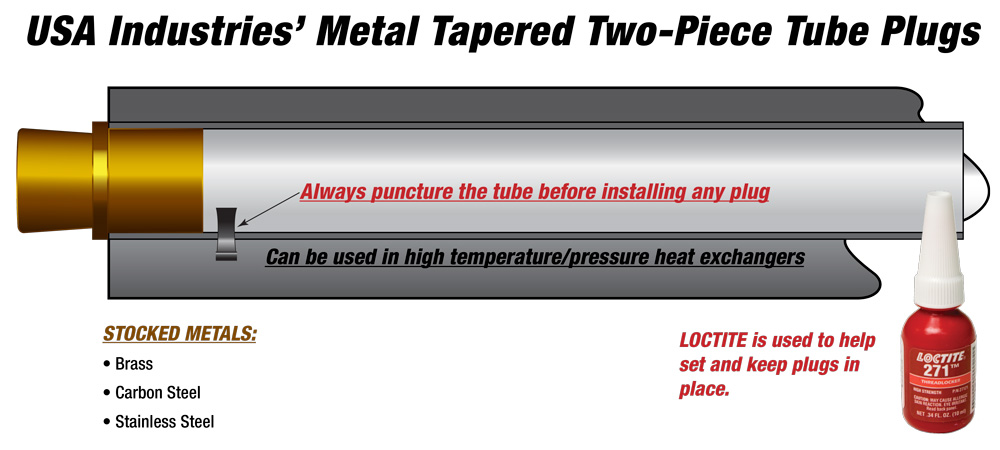

- Puncture the tube. Vent leaking tubes first so pressure can't build up behind the plug. The One-Rev Internal Tube Cutter does it in a single revolution.
- Place the ring inside the boiler, condenser, or heat exchanger tube.
- Drive the tapered pin into the ring. The ring expands outward for a full 360° seal along its entire length.
Cut Delivery From Weeks to Days
Send your tube I.D. and see how fast we can deliver.

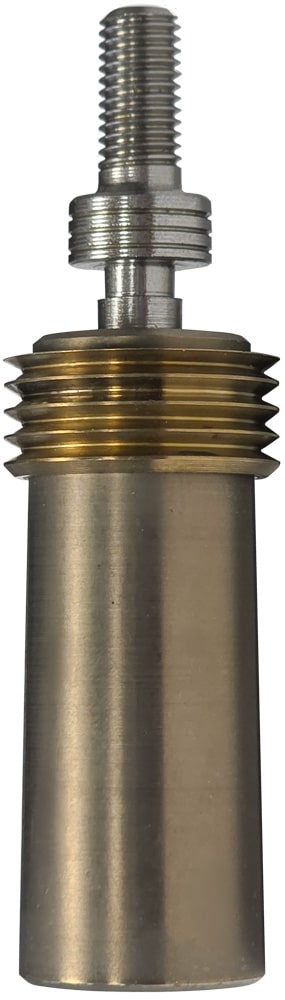

Snap It® Engineered Tube Plugs
For a pressure rated, repeatable seal with no hammering or welding, choose Snap It®. It installs hydraulically in under 60 seconds.
Two-Piece Tube Plug FAQ
Why do you need the exact tube I.D.?
We turn down the ring to fit your tube's inside diameter, so you get a better fit and a better seal.
Will these plugs damage my tube sheet?
The ring seals uniformly along its entire length, so two-piece plugs won't damage the tube sheet on a Fin-Fan® unit, heat exchanger, boiler, or condenser.
Do I need to vent the tube before installation?
Yes. Always puncture leaking tubes before installing a plug to prevent pressure buildup, which can turn the plug into a dangerous projectile.
What tolerance do you turn the ring to?
Our lathes hold +/- .005".
Can you customize the ring and pin length?
Yes. We'll customize any part of the plug to your needs.
Are these plugs returnable?
No. Because each plug is made to your exact I.D., we can't accept returns.
