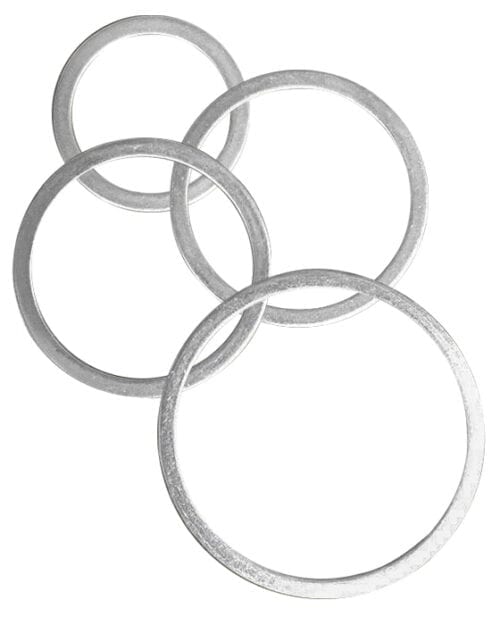

Flat Gaskets for Header Plugs
The traditional solution to increasing your seal in an air cooled heat exchanger
When tightening down header plugs to your Fin-FanĀ® / air cooled heat exchanger, it's standard operating procedure to include a simple flat gasket to prevent leaks and create a better seal. USA Industries has the capacity to produce massive quantities of flat heat exchanger gaskets in any material, at any size and with any specialty coatings you may require. We're available 24/7, and in-stock orders ship same day!
Features
Sizing Chart
EZ Torque Gaskets
Line Sheet
Sizing Chart
EZ TorqueĀ® Gaskets
Line Sheet
FLAT HEADER PLUG GASKET PRODUCT FEATURES:
- Inexpensive solution to seal against header box leaks
- Can be used with your existing header plugs
- The traditional solution to heat exchanger leaks
- Same-day shipment on in-stock sizes
See our EZ Torque Gaskets for Header Plugs
Flat Gasket Sizing Chart |
||||
|---|---|---|---|---|
| Typical Tube OD | Typical Plug Diameter | TypicalUNF Thread | HexSize | Flat Gasket Product # |
| 5/8" | 3/4" | 16 | 1" | SP-G-0750*(-M) |
| 1" | 1 1/8" | 12 | 1 3/8" | SP-G-1125*(-M) |
| 1 1/4" | 1 3/8" | 12 | 1 5/8" | SP-G-1375*(-M) |
| 1 1/2" | 1 5/8" | 12 | 1 7/8" | SP-G-1625*(-M) |
| 2" | 2 1/8" | 12 | 2 3/8" | SP-G-2125*(-M) |
Upgrade to USA Industries' Exclusive EZ TorqueĀ® Gaskets
Greatly Improve Sealing Capabilities With Less Than Half the Installation Torque Required for Flat Gaskets
Our EZ Torque GasketĀ provides a positive seal with less than half the installation torque required for flat gaskets. The gasket is a serrated metal core with bonded layers of graphite on each surface. This greatly increases the ability of our gasket to seal against surface imperfections, eliminating expensive re-machining costs.
TheĀ EZ Torque GasketĀ helps lower the expense of downtime during your turnaround / shutdown by ensuring you pass leak tests on the first attempt. Our gasket also requires less torque, preventing damage and deformation to header box gasket surfaces, plug thread galling, and thread shear within your header box.
EZ TORQUE GASKET CUSTOMER TESTIMONIAL
"I can vouch for these gaskets. Since we started using these over the OEM, we have not had a start up leak on our fin fan exchangers."
M. Ferguson
BWG Tube Sizing Chart
Website-Shoulder-Plugs-Stocked-Ready-to-Ship
USA Industries
Product Line Sheet
Frequently Asked Questions
We don't have a minimum quantity. We know sometimes you need 1 plug there tomorrow, and we're here to help! We do offer price breaks for larger quantities.
Yes! We make our gaskets and header plugs in house and can fill any size order for both of these.
No. The material anneal process is before the gasket is stamped out.
We're a custom machine shop as well as a manufacturer of piping accessories and tube plugs. We have all the resources neccessary to meet your needs for any custom specifications when making your gaskets.
Yes! Because we're the manufacturer, we can customize your gaskets to the exact specs you need, all without adding much lead time!
