800 Series 3-Roll & 5-Roll Tube Expanders
The most popular and most economical tube expander worldwide. For heat exchanger tubes 1/2" to 1-1/2" OD, with 1-1/2" or 2-1/4" rollers for roll depths from 1/2" to 2-1/4". Order the complete tool, or the mandrel and roll set separately. Find your part number ›
Get a Quote or Order
Send us these details and we'll respond the same business day.
- 3-roll or 5-roll
- Tube OD and BWG (gauge)
- Tubesheet thickness (roll depth)
- Complete tool, mandrel, or roll set
- Quantity and date needed
| Specification | Details |
|---|---|
| Expander Types | 3-Roll • 5-Roll |
| 3-Roll Tube Sizes | 1/2" – 1-1/2" OD (Tube ID 0.334" – 1.43", 8.4 – 36.3 mm) |
| 5-Roll Tube Sizes | 5/8" – 1-1/2" OD (Tube ID 0.509" – 1.44", 12.9 – 37.0 mm) |
| Tube Gauges | 3-Roll: 8 – 22 BWG • 5-Roll: 12 – 25 BWG (varies by OD) |
| 1-1/2" Rollers | Roll depth 1/2" – 1-1/2" (12.7 – 38.1 mm) |
| 2-1/4" Rollers | Roll depth 1-1/4" – 2-1/4" (31.7 – 57.1 mm) |
| Order As | Complete tool • Mandrel • Roll set |
| Part Numbers | 3-Roll: 797 – 900 • 5-Roll: 815-5 – 900-5 (see charts) |
3-Roll vs. 5-Roll
Both expanders roll heat exchanger tubes into the tubesheet with a tapered mandrel driving the rolls outward. Choose by tube size and the number of rolls you want in contact with the tube.

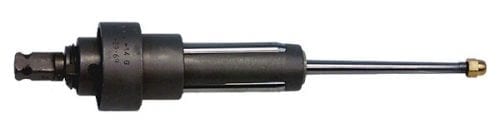

800 Series 3-Roll

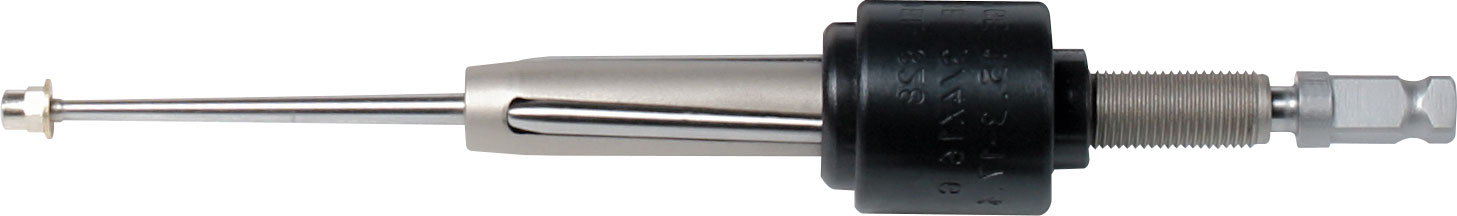

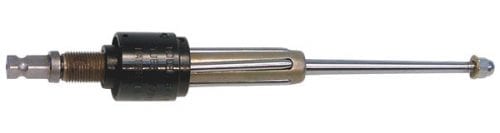

800 Series 5-Roll
Choose Your Roll Depth
Roll depth is how far into the tubesheet the tube is expanded. Pick the roller length that covers your tubesheet thickness.
| Roller Length | Roll Depth (Min "A" to Max "B") |
|---|---|
| 1-1/2" (38.1 mm) | 1/2" – 1-1/2" (12.7 – 38.1 mm) |
| 2-1/4" (57.1 mm) | 1-1/4" – 2-1/4" (31.7 – 57.1 mm) |
800 Series Sizing Charts

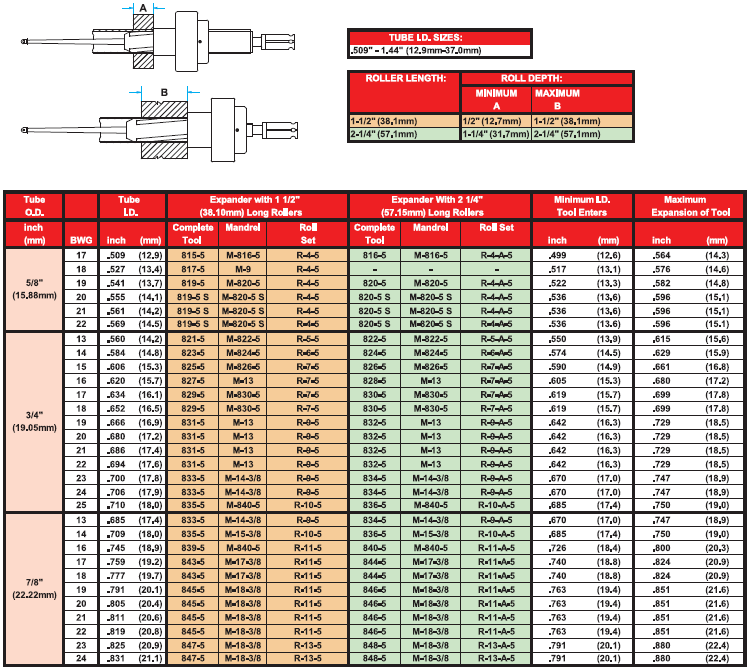

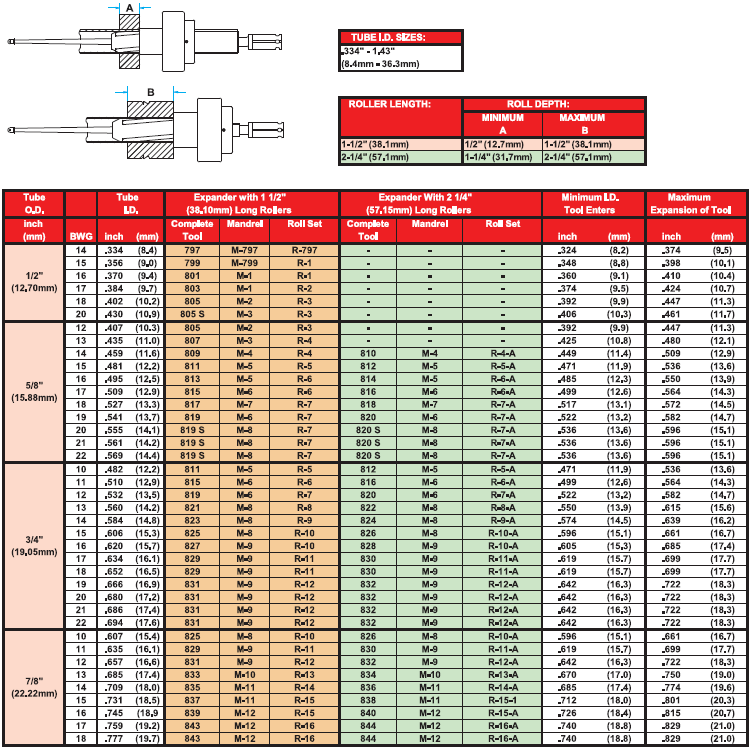

Find your tube OD and BWG, then read across for the complete tool, mandrel, and roll set part numbers.
Click any chart to open it full size.
800 Series Tube Expander FAQ
What tube sizes do the 800 Series expanders fit?
The 3-roll fits 1/2" to 1-1/2" OD tubes (0.334" to 1.43" ID). The 5-roll fits 5/8" to 1-1/2" OD tubes (0.509" to 1.44" ID). See the sizing charts for each OD and BWG.
Which roller length do I need?
Match it to your tubesheet. 1-1/2" rollers cover roll depths from 1/2" to 1-1/2". 2-1/4" rollers cover 1-1/4" to 2-1/4".
Can I buy mandrels and roll sets separately?
Yes. Every size in the charts lists a complete tool, mandrel, and roll set part number, so you can replace worn parts without buying a new tool.
How do I find the right part number?
Find your tube OD and BWG in the chart for 3-roll or 5-roll, then read across under your roller length. Or send us the tube OD, gauge, and tubesheet thickness and we'll spec it for you.
What drives the expander?
800 Series expanders run on a tube rolling motor. See our tube rolling motors, or call us to match a motor to your expander.
