Reusable
Rubber Stopper Plugs

For Isolation or Vacuum Testing Applications

Cut Your Delivery Time

FROM
WEEKS
TO DAYS!

See how fast we can deliver!

Product Overview

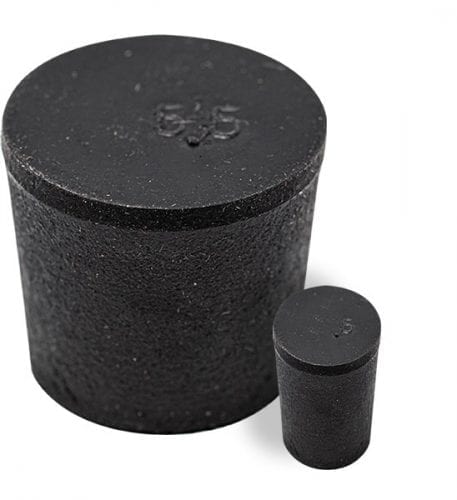

Low Pressure Rubber Tapered Plugs

Neoprene — Temporary & Low-Pressure Applications

A cost-effective alternative to higher-cost tube plugs for temporary or low-pressure applications. Made of resilient neoprene, these plugs are commonly used for low-pressure isolation or vacuum testing — including use with our Vacuum Leak Detector (VLD-2500). One size fits multiple port sizes.

Material

Resilient neoprene construction — soft rubber conforms to the tube interior for a tight, reliable seal across multiple port sizes.

Temperature Range

Temperature resistant from -25°F to 180°F (-31°C to 82°C) — suitable for a broad range of service conditions.

Applications

Ideal for low-pressure isolation and vacuum testing — designed for use alongside the USA Industries Vacuum Leak Detector (VLD-2500).

Availability

500,000+ tube plugs in stock and ready to ship — in-stock items ship within 24 hours.

Ease of Installation

Install with a simple press fit — remove with a tap of a rubber mallet or the pull of pliers. Reusable with proper installation and care. One size fits multiple port sizes, minimizing inventory requirements.

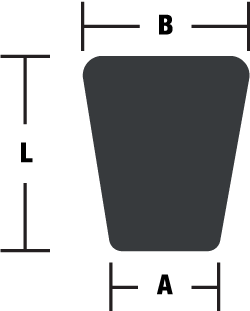

Plug Sizing Chart

Installing Tube Plugs?

Snap It® Engineered Tube Plugs

Shoulder Plugs & EZ Torque® Gaskets

Rubber Tube Plug / Stopper Specifications

Part No.	Tube O.D. (in.)	Gauge	Dimension (in.) +/- .005			Dimension (mm) +/- .127
Part No.	Tube O.D. (in.)	Gauge	"A" Small	"B" Large	"L" Length	"A" Small	"B" Large	"L" Length
TP-000-R	1/2	14 - 24	0.313	0.500	0.875	7.950	12.700	22.225
TP-00-R	5/8	13 - 24	0.406	0.594	1.000	10.312	15.088	25.400
TP-0-R	3/4	11 - 17	0.500	0.656		12.700	16.662
TP-1-R	3/4	14 - 24	0.563	0.750		14.300	19.050
TP-2-R	7/8	11 - 17	0.625	0.781		15.875	19.837
TP-3-R	7/8	15 - 24	0.719	0.938		18.263	23.825
TP-3-R	1	10 - 19	0.719	0.938		18.263	23.825
TP-4-R	1	11 - 24	0.750	1.000		19.050	25.400
TP-4-R	1-1/8	7 - 14	0.750	1.000		19.050	25.400
TP-5-R	1-1/8	13 - 19	0.906	1.063		23.012	27.000
TP-5-1/2-R	1-1/8	16 - 24	0.969	1.109		24.613	28.169
TP-5-1/2-R	1-1/4	10 - 13	0.969	1.109		24.613	28.169
TP-6-R	1-1/4	13 - 24	1.031	1.250		26.187	31.750
TP-6-1/2-R	1-3/8	7 - 16	1.063	1.344		27.000	34.138
TP-7-R	1-3/8	14 - 24	1.188	1.438		30.175	36.525
TP-7-1/2-R	1-1/2	7 - 20	1.125	1.500		28.575	38.100
TP-8-R	1-1/2	14 - 24	1.312	1.625		33.325	41.275
TP-8-R	1-5/8	10 - 20	1.312	1.625		33.325	41.275
TP-8-1/2-R	1-5/8	16 - 24	1.406	1.688		35.712	42.875
TP-9-R	1-3/4	10 - 20	1.469	1.750		37.313	44.450
TP-9-1/2-R	1-3/4	12 - 24	1.500	1.813		38.100	46.050
TP-10-R	2	7 - 15	1.625	1.969		41.275	50.013
TP-10-1/2-R	2	12 - 20	1.750	2.078		44.450	52.781
TP-11-R	2	18 - 24	1.875	2.203		47.625	55.956
TP-11-R	2-1/4	8 - 18	1.875	2.203		47.625	55.956
TP-11-1/2-R	2-1/2	8 - 14	2.000	2.469		50.800	62.713
TP-12-R	2-1/2	12 - 18	2.125	2.500		53.975	63.500
TP-13-R	2-3/4	6 - 13	2.281	2.688		57.937	68.275
TP-13-1/2-R	2-3/4	12 - 18	2.438	2.969	1.325	61.925	75.413	34.925
TP-13-1/2-R	3	6 - 16	2.438	2.969	1.325	61.925	75.413	34.925
TP-14-R	3	12 - 18	3.000	3.500	1.500	76.200	88.900	25.400
TP-15-R	3-1/2	13 - 18	3.250	4.000	1.500	82.550	101.600	38.100
TP-16-R	4	7 - 18	3.500	5.000	2.000	88.900	127.000	25.400

Tube Plug Accessories

One-Rev Internal Tube Cutter

1-Rev Internal Tube Cutter Product Photo

Puncture tubes before installation with USA Industries' One-Rev Internal Tube Cutter — a fast, precise tool engineered to work seamlessly with the Snap It tube plug system.

Punctures tubes in a single revolution

Designed for use before tube plug installation

Contact USA Industries for sizing details & questions — (800) 456-8721
