Product Overview

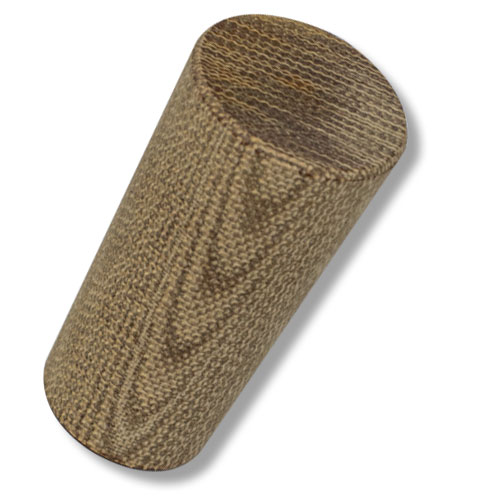

Fiber & Wood | Phenolic Tube Plugs

Non-Metal — Emergency & Temporary Applications

USA Industries offers non-metal tube plugs for emergency or temporary plugging of condensers, boilers, and Fin-Fan® heat exchangers. Available in wood, phenolic, or micarta — these plugs install with a tap of a rubber mallet and expand upon contact with water for a simple, effective seal that won't damage your tube sheet.

Materials

Available in wood fiber, phenolic, and micarta — all constructed from non-metal fiber rods that are corrosion resistant and safe for tube sheet surfaces.

How It Seals

Plugs expand upon contact with water — conforming to the tube interior for an effective seal with minimal manpower and time.

Installation

Install with a simple tap of a rubber mallet — safe, easy to use, and easily removed when the job is done.

Availability

500,000+ plugs in stock ready to ship — in-stock items ship within 24 hours. Custom sizes and materials available upon request.

Production Capacity

Production capabilities exceed 5,000 plugs per day across more than 20 materials with any coatings required. Need a custom size or material? Contact us today.

Important Temperature Caution

Fiber tube plugs — wood, micarta, or phenolic — should never be subjected to temperatures exceeding 230°F (110°C).

Plug Sizing Chart

Installing Tube Plugs?

Snap It® Engineered Tube Plugs

Shoulder Plugs & EZ Torque® Gaskets

Non-Metal Plug (Phenolic / Micarta / Wood) Dimensional Specifications

Part No.	Tube O.D. (in.)	Gauge	Dimension (in.) +/- .005
Part No.	Tube O.D. (in.)	Gauge	"A" Small End	"B" Large End	"L" Length
TP-1	1/4	18 - 24	0.141	0.235	1-1/4
TP-1	3/8	12 - 14	0.141	0.235	1-1/4
TP-2	3/8	15 - 24	0.213	0.371	1-3/4
TP-2	1/2	13 - 15	0.213	0.371
TP-3	1/2	15 - 24	0.337	0.495
TP-3	5/8	12 - 14	0.337	0.495
TP-4	5/8	14 - 24	0.449	0.625
TP-4	3/4	10 - 14	0.449	0.625
TP-5	3/4	14 - 24	0.564	0.750
	7/8	10 - 13
	1	8 - 9
TP-6	7/8	15 - 24	0.706	0.875
TP-6	1	10 - 15	0.706	0.875
TP-7	1	13 - 18	0.776	0.934
TP-8	1	18 - 24	0.892	1.050
TP-8	1-1/8	13 - 17	0.892	1.050
TP-9	1-1/8	15 - 24	0.949	1.125	2
TP-9	1-1/4	10 - 14	0.949	1.125
TP-10	1-1/4	13 - 19	1.010	1.186
TP-11	1-1/4	19 - 24	1.147	1.323
TP-12	1-1/2	10 - 24	1.200	1.495	3
TP-13	1-1/2	14 - 24	1.305	1.600
TP-13	1-3/4	6 - 13	1.305	1.600
TP-14	1-3/4	14 - 22	1.575	1.870
TP-14	2	6 - 13	1.575	1.870
TP-15	2	12 - 22	1.700	1.995
TP-16	2-1/4	6 - 13	1.805	2.100
TP-17	2-1/2	5 - 18	2.000	2.375
TP-18	2-3/4	4 - 10	2.232	2.500
TP-19	3	5 - 12	2.524	2.834	4
TP-20	3	10 - 23	2.625	3.000
TP-21	3-1/4	7 - 14	2.875	3.125
TP-22	3-1/4	13 - 23	3.010	3.250
TP-23	3-1/2	7 - 12	3.125	3.375
TP-24	3-1/2	13 - 23	3.260	3.500
TP-25	3-3/4	5 - 12	3.274	3.567
TP-26	3-3/4	13 - 23	3.510	3.750
TP-27	4	5 - 12	3.524	3.817
TP-28	4	13 - 23	3.782	4.000

Tube Plug Accessories

One-Rev Internal Tube Cutter

1-Rev Internal Tube Cutter Product Photo

Puncture tubes before installation with USA Industries' One-Rev Internal Tube Cutter — a fast, precise tool engineered to work seamlessly with the Snap It tube plug system.

Punctures tubes in a single revolution

Designed for use before tube plug installation

Contact USA Industries for sizing details & questions — (800) 456-8721
