Heat Exchanger Pneumatic Roll Motors
Drive motors for rolling tubes in heat exchangers, condensers, boilers, and more

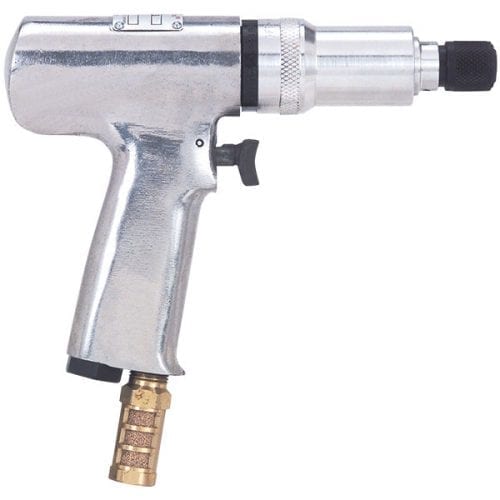

Model 720 Series
Available in the following sizes:
2,500 RPM - Torque 2 to 8 in-lbs - 1/4" Sq Drive
Recommended Max Tube Size - 1/4"
1,800 RPM - Torque 2 to 27 in-lbs - 1/4" Sq Drive
Recommended Max Tube Size - 3/8"
550 RPM - Torque 2 to 75 in-lbs - 1/4" Sq Drive
Recommended Max Tube Size - 1/2"

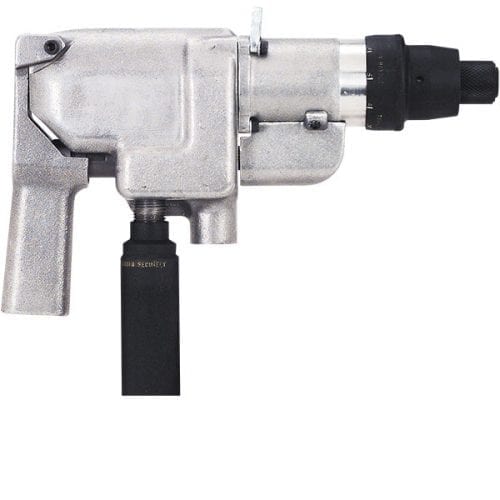

Model 850 Push / Pull Series
Available in the following sizes:
1,250 RPM - Torque 15 to 110 in-lbs - 3/8" Sq Drive
Recommended Max Tube Size - 3/4"
600 RPM - Torque 20 to 200 in-lbs - 3/8" Sq Drive
Recommended Max Tube Size - 1"

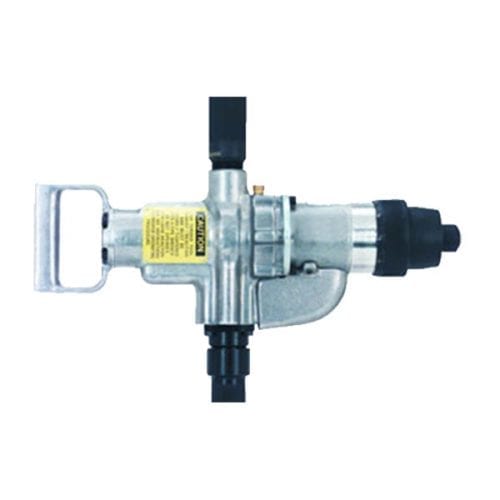

Model 1050 Series
Available in the following sizes:
400 RPM - Torque 3.3 to 26.4 ft-lbs 1/2" Sq Drive
Recommended Tube Size - 1 1/4"
Model 1550 Push / Pull Series
Available in the following sizes:
900 RPM - Torque 4.7 to 30.7 ft-lbs - 1/2" Sq Drive
Recommended Tube Size - 1 1/2"
250 RPM - Torque 14.3 to 109.9 ft-lbs - 1/2" Sq Drive
Recommended Tube Size - 2 1/2"
Right Angle Drive Roll Motor
Designed for expanding boiler tubes in steam, mud drums, fire tube & related equipment.
190 RPM - Torque 70 to 140 ft-lbs - 5/8" Sq Drive
Recommended Tube Size - 2 1/2"
90 RPM - Torque 150 to 305 ft-lbs - 3/4" Sq Drive
Recommended Tube Size - 4"
