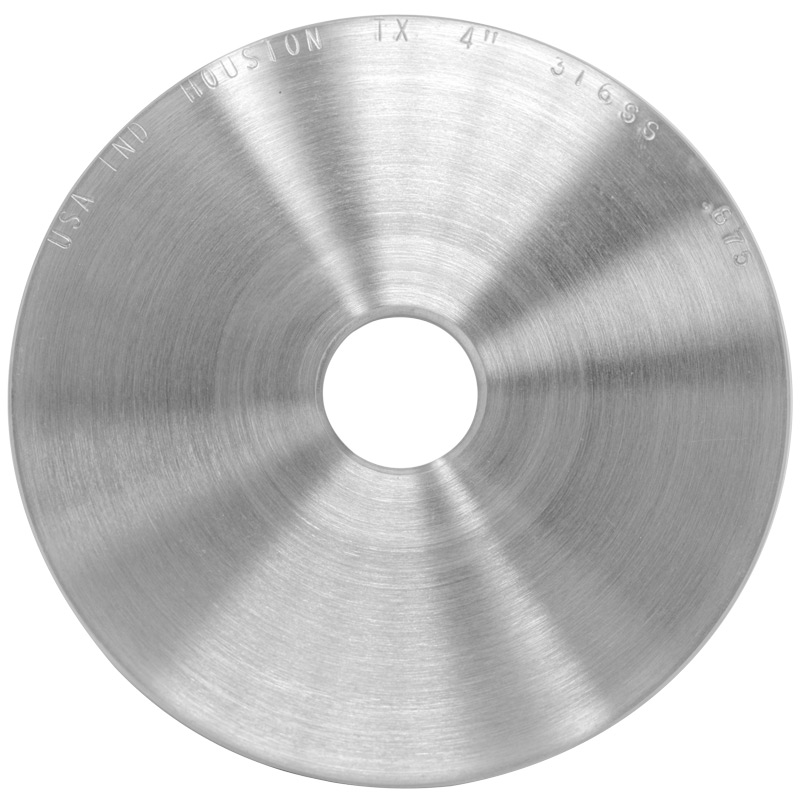

Universal Orifice Plates (Series 500)

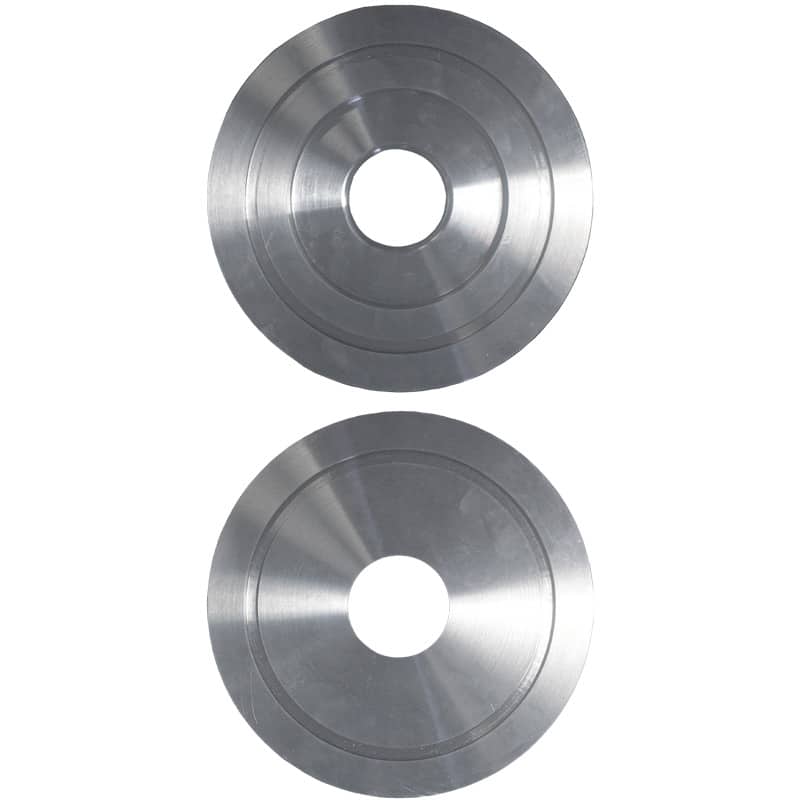

For use in All Standard Orifice Fitting Assemblies or Ring Type Joint Plate Holders
SERIES 500 - UNIVERSAL ORIFICE PLATE FEATURES & BENEFITS:
- Meets or exceeds AGA, ISA, ANSI, ASME & API standards
- Precision CNC machining for superior accuracy and quality control
- Simple to use and easy to troubleshoot
- Minimal maintenance required
- Stocked materials: 304/316 Stainless Steels; available in any material requested
- Fast and accurate orifice bore calculation services available
- USA Industries will provide coatings upon request
- In-stock items ship within 24 hours, same day local delivery ability in Texas
Each Series 500 Universal Orifice Plate adheres to rigorous manufacturing processes, is crafted to comply with industry accuracy standards, and is tailored to meet your specific application needs. To ensure optimal performance, the plate's bore must be accurately sized and beveled. Our engineering staff can quickly and accurately run your orifice bore calculations for a fee if needed.

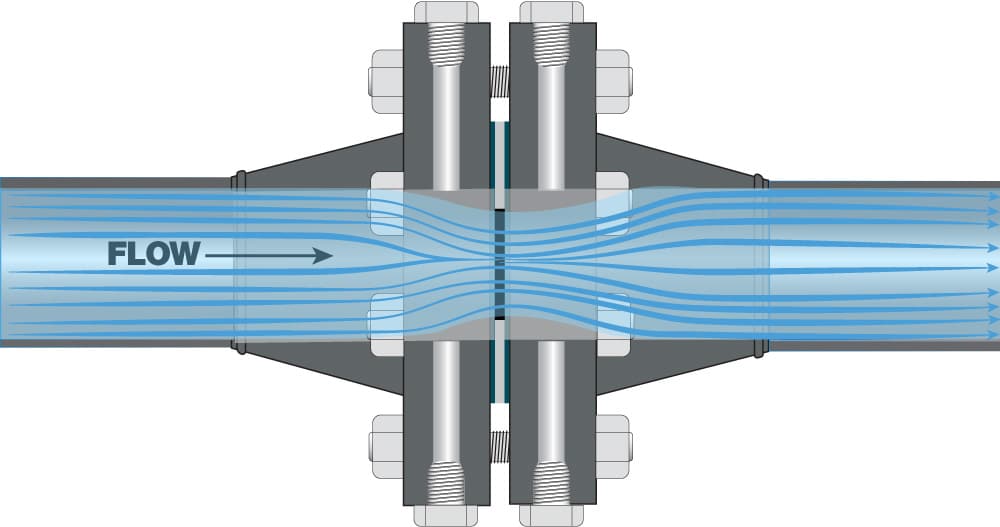

USA Industries' Series 500 Universal Orifice Plates are compatible with standard orifice fitting assemblies or ring-type joint plate holders, making them suitable for use with any dual or single-chambered orifice fittings available. These plates are widely used for measuring differential pressure flow due to their simplicity, reliable performance, easy installation, and resilience to harsh atmospheric conditions.
Orifice plates are stocked in 304 & 316 stainless steel and can be provided in various materials such as monel, hastelloy, copper, nickel, and more. Additionally, USA Industries can apply coatings based on your specific requirements.
To ensure a proper seal, seal rings are snapped in after installing the orifice plate into the carrier, creating seals on both the upstream side of the orifice plate and the fitting seat.
NEED A BORE CALCULATION?
Let USA Industries' engineers calculate the correct bore size based on process data for the project.
Orifice Plates Sizing Chart |
|||
|---|---|---|---|
| NPS* | A | L | T |
| 1" | 1.312" | .02" | 1/8" |
| 1 1/2" | 2" | .03" | 1/8" |
| 2" | 2.437" | .03" | 1/8" |
| 2 1/2" | 2.812" | .03" | 1/8" |
| 3" | 3.437" | .03" | 1/8" |
| 4" | 4.406" | .06" | 1/8" |
| 5" | 6" | .06" | 1/8" |
| 6" | 6.437" | .06" | 1/8" |
| 8" | 8.437" | .125" | 1/4" |
| 10" | 10.687" | .125" | 1/4" |
| 12" | 12.593" | .25" | 1/4" |
| 14" | 14" | .25" | 1/4" |
| 16" | 16" | .25" | 3/8" |
| 18" | 18" | .25" | 3/8" |
| 20" | 20" | .375" | 3/8" |
| 24" | 24" | .375" | 3/8" |
All Sizes in Inches
'A' Dimensions do not include seal ring
Note: USA Industries, Inc.'s orifice bore calculation service is provided on a professional fee basis.

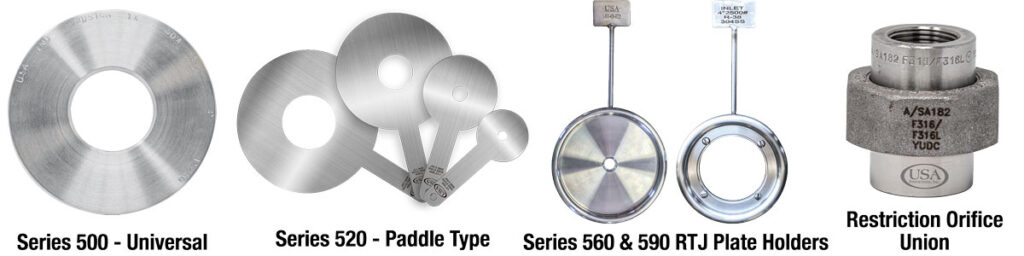

Series 500, 520, 560, 590 & Restriction Union
Line Sheet
Frequently Asked Questions
Yes, we offer Hycar® seal rings / o-rings that fit our universal orifice plates. Request with your next order to have them shipped together.
Yes, we can completely customize your orifice plates to your unique needs.
We stock our orifice plates in 304 & 316 stainless steel, but they are available in any material requested. We have produced orifice plates for clients in everything from monel to hastelloy to copper-nickel alloys and more!
Yes, USA Industries keeps many sizes ready in stock that only need a bore punched in them.
Yes, we typically use the bore calculations provided to us by the customer, but our staff engineers can do the bore calculations upon request for a small additional fee.
Yes, we regularly coat our orifice plates for customers that request it. Just let us know what you need and we'll take care of you!
