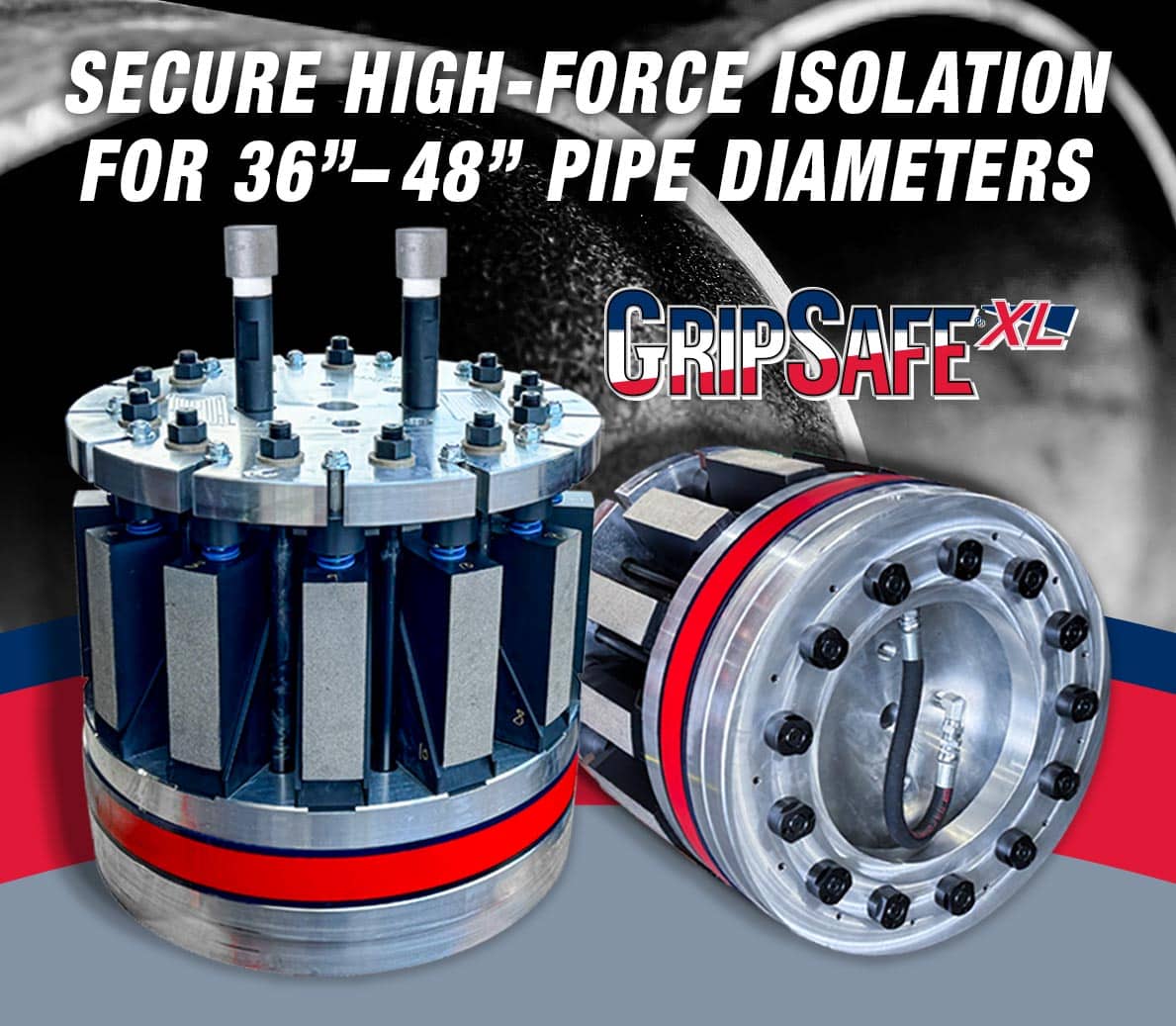

Advanced High-Pressure Isolation & Testing Technology

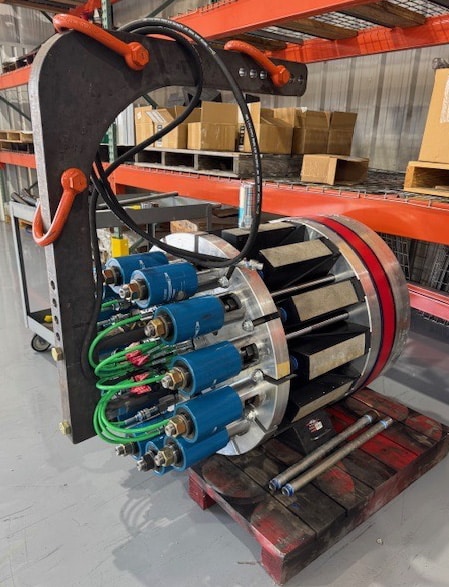

The GripSafe XL represents a breakthrough in large-bore pipe testing technology. Designed for 36"-48" pipe outer diameters, this patented system eliminates the need for traditional welded end caps while maintaining the ability to hold pressures up to the pipe's yield point.
Built on over 40 years of USA Industries' engineering excellence and more than nine years of dedicated R&D, GripSafe XL introduces revolutionary wedge-based gripping technology that fundamentally transforms how industrial facilities approach pressure testing on large diameter piping systems.
The Large-Bore Testing Challenge
Large diameter piping systems present unique testing challenges. At just 500 PSI, a 36" pipe generates over 500,000 pounds of force, while a 48" system exceeds 900,000 pounds. These extreme forces have traditionally necessitated time-consuming, expensive welded end caps.
GripSafe XL addresses this challenge through patented wedge-based gripping technology that redistributes forces across the pipe wall, eliminating pressure points while providing reliable containment at pressures up to the pipe's yield point.
The system's multi-durometer seal design and Gritlock® coated wedges work in concert to create thousands of microscopic contact points, ensuring grip strength increases proportionally with test pressure while protecting pipe integrity.
Pipe Diameter Range
36" - 48" Outer Diameter
Pressure Capability
Up to Pipe's Yield Point
Force Management
500,000 - 900,000+ lbs
Installation Time
~15 minutes (typical)
Service Life
Hundreds of test cycles
- Designed for large-diameter piping applications
- Holds pressure up to the pipe's yield point during hydrostatic and pneumatic testing
- Patented wedge gripping system — self-energizing design increases grip under pressure
- One plug fits multiple pipe schedules, lowering rental costs
- Replaces welded end caps and temporary test hardware, reducing labor, cost, and risk
- Fast installation and removal
- Large-diameter fabricated pipe spools
- EPC construction and modular fabrication yards
- Refining, petrochemical, LNG, and industrial piping
- Projects where hydrotesting is restricted
- Pneumatic testing and moisture-sensitive piping
- Patented wedge gripping mechanism engineered for high-load large-diameter use
- Self-energizing seal — pressure increases holding force automatically
- Multi-schedule compatibility eliminates the need for size-specific inventory
- Engineered to reduce test volume in pneumatic applications
- Built for repeated use in demanding construction and plant environments
Results
Key Technical Features
Patented innovations that enable reliable high-pressure containment

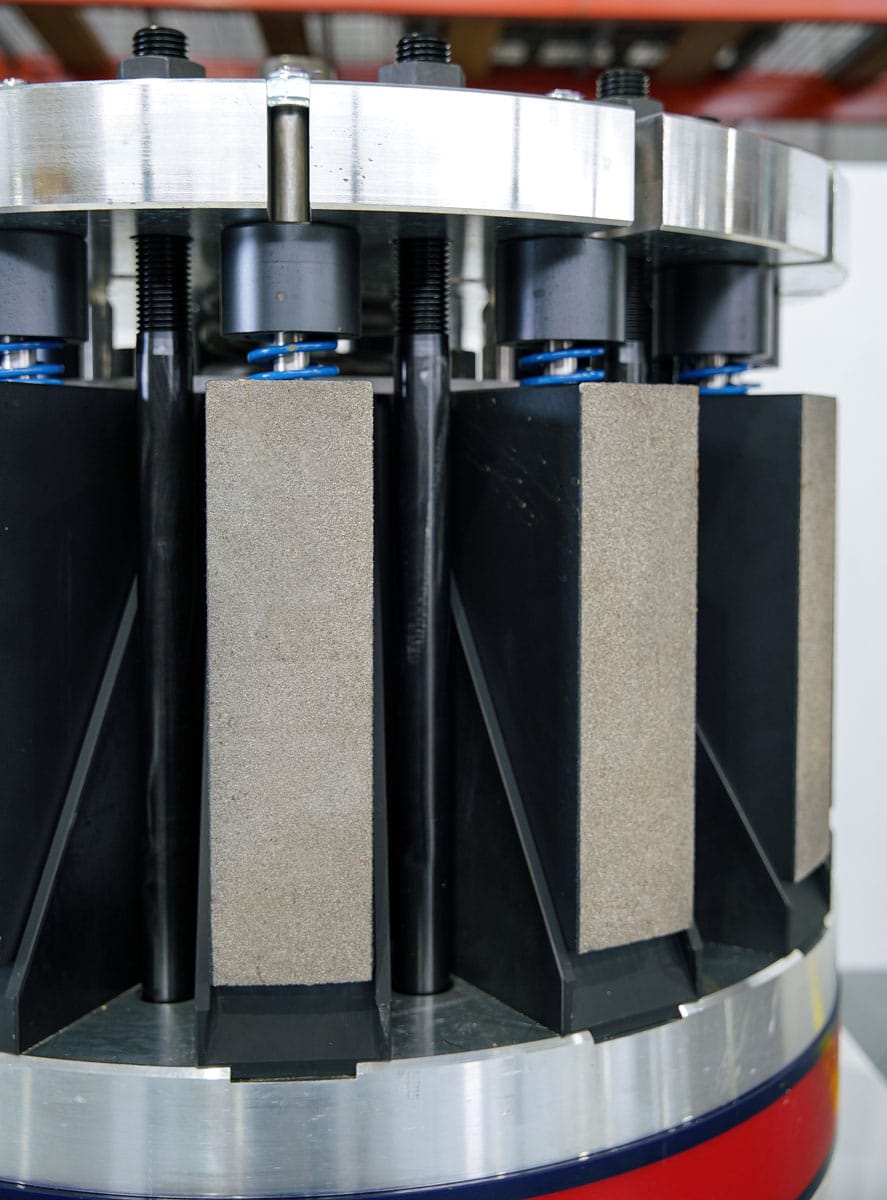

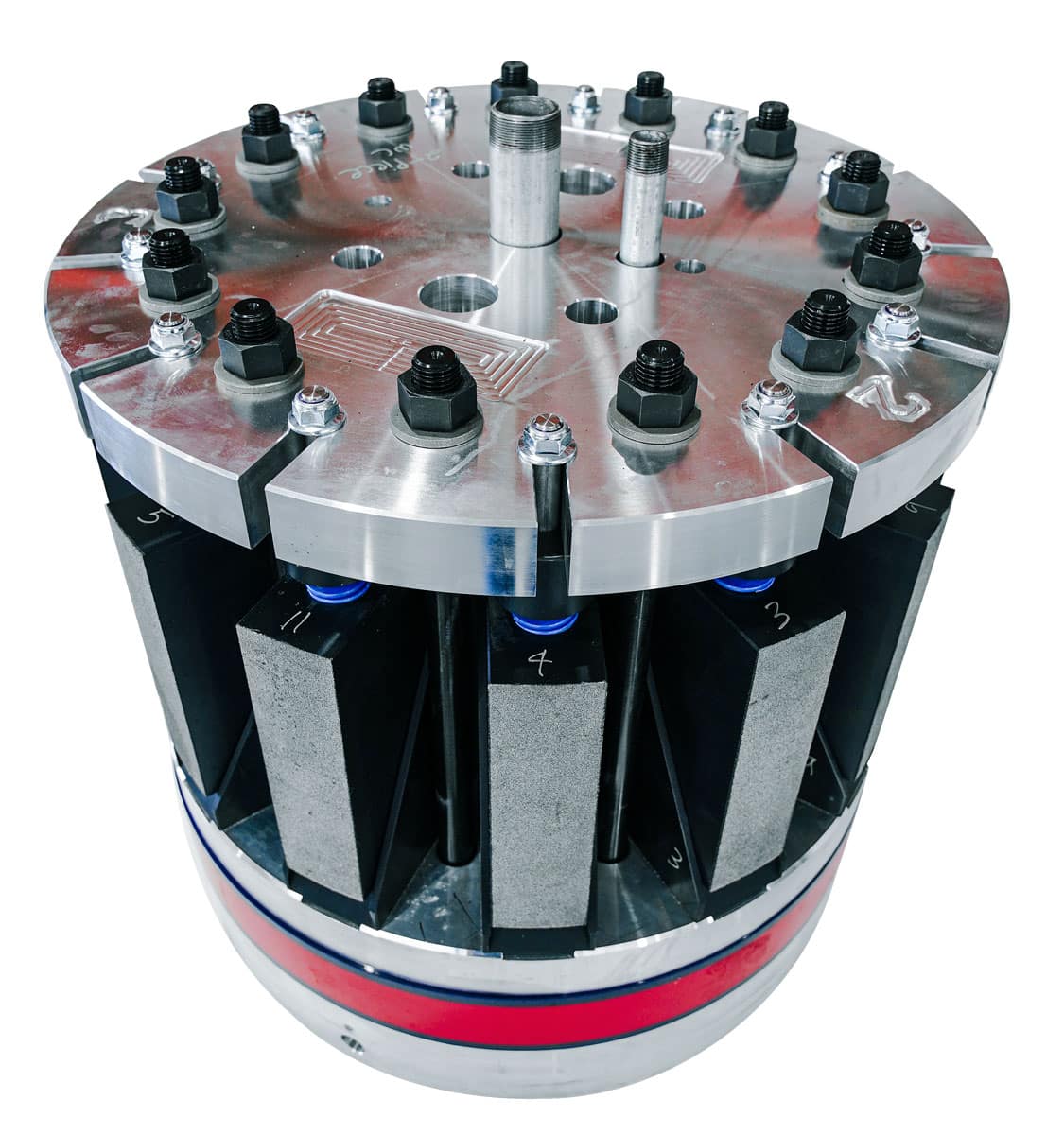

Intelligent Wedge System
Self-adjusting wedges distribute load evenly across the pipe wall, automatically conforming to ovality and surface irregularities. Grip strength increases proportionally with test pressure.
- Even Load Distribution: Eliminates pressure points
- Adaptive Design: Accommodates pipe variations
- Pressure-Responsive: Stronger under load
Gritlock® Surface Technology
Proprietary coating creates thousands of microscopic contact points for superior grip without surface damage. Proven durability through extensive field testing.
- Microscopic Contact: Maximum grip area
- Surface Protection: Minimal pipe marking
- Long-Lasting: Hundreds of cycles
Tri-Ply® Multi-Durometer Seals
Patented Tri-Ply seal design prevents deformation and edge mushrooming. Enhanced flexibility and strength beyond standard seal configurations.
- Deformation Resistant: Maintains seal integrity
- Enhanced Flexibility: Superior adaptation
- Patent Protected: Proprietary design

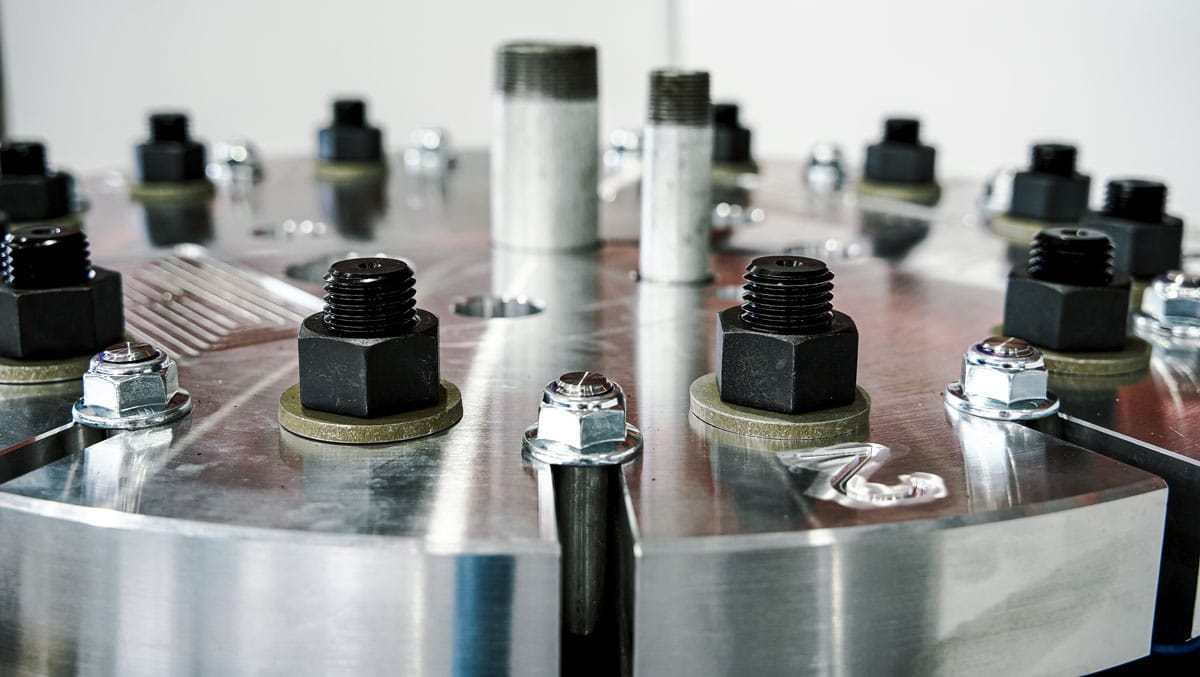

Aviation-Grade Construction
Lightweight aluminum construction reduces handling requirements while maintaining structural integrity under extreme forces.
- Material: Aviation-grade aluminum
- Weight: Optimized for handling
- Durability: Maximum performance
Temperature Performance
Engineered seal materials maintain integrity across industrial temperature ranges.
- Continuous: -10°F to 170°F
- Intermittent: Up to 200°F
- Material Stability: Consistent performance
Standards Compliance
Designed and manufactured to meet or exceed relevant industry standards for piping systems.
- ASME B16.5
- ASME B31.1/B31.3
- ASME PCC-2-2018
GSXL Technical Specifications
Hydrotesting Methodology Comparison
GripSafe XL vs. traditional welded end caps
| Parameter | Welded End Caps | GripSafe XL |
|---|---|---|
| Installation Time | 8-24 hours per location | ~15 minutes per location |
| Skilled Labor Required | Certified welders, full crew | Standard operators (1-2 people) |
| Permitting | Hot work permits, fire watch | No permits required |
| Inspection Requirements | X-ray, visual inspection, QC | Visual verification only |
| Cure/Wait Time | Hours for cooling, inspection | Test immediately |
| Removal Process | Cut, grind, rebevel pipe | Loosen nuts, extract plug |
| Reusability | Single use (consumable) | Hundreds of test cycles |
| Failure Risk | Weld defects, incomplete fusion | Proven mechanical reliability |
| Overall Process Time | 1-3 days per test package | Same day completion |
Industrial Applications
Where GripSafe XL technology delivers the most value
Construction & Fabrication
- EPC construction yards
- Modular fabrication facilities
- Large-diameter pipe spool fabrication
- Pre-commissioning activities
- Field construction sites
Process Industries
- Refining operations
- Petrochemical facilities
- Chemical processing plants
- LNG terminals and infrastructure
- Industrial gas systems
Specialized Testing
- Projects restricting hydrotesting
- Pneumatic test requirements
- Moisture-sensitive systems
- High-pressure pipeline testing
- Post-repair verification
Maintenance & Turnaround
- Planned maintenance outages
- Turnaround activities
- System modifications
- Integrity testing programs
- Emergency repair verification
Technical Documentation
GripSafe XL Product Line Sheet
GripSafe XL product details and specifications from USA Industries
Download PDF →Additional Information
