EZ Torque® Gaskets for Header Plugs
Kammprofile Gaskets Prevent Deformation, Thread Galling & Shear in your Air-Cooled Heat Exchangers
EZ TORQUE GASKET PRODUCT FEATURES:
- For standard Nominal Tube sizes: 5/8 - 2-1/8"
- Metal core available in any material type - 316 Stainless Steel, Inconel, Hastelloy, etc.
- Manufactured with machined metal core and bonded graphite face
- Graphite prevents gasket from seizing to header and/or plug, and eliminates atmospheric corrosion
- Gaskets virtually eliminate field remachining
- Seals evenly against surface imperfections
- Prevents damage from over-torquing
- Can be used with your existing header plugs
- Confidentally seal high pressure applications
- Pass leak tests on first attempt!
- Same-day shipment on in-stock sizes, and same day local delivery ability in Texas and Louisiana
Description
Uses
Sizing Chart
Line Sheet
Sizing Chart
EZ Torque® Gaskets
Line Sheet

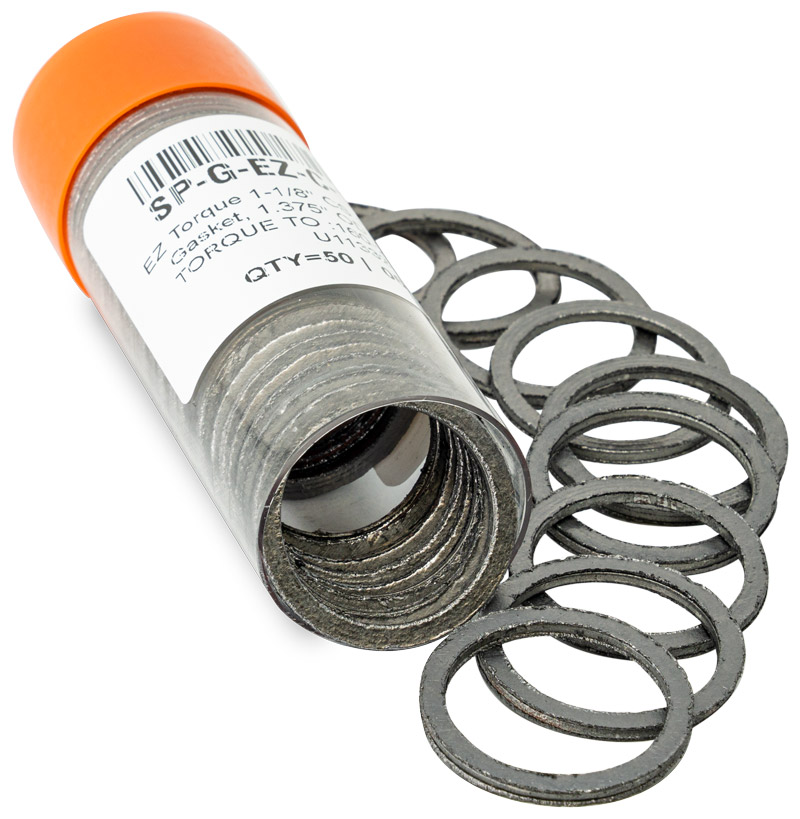

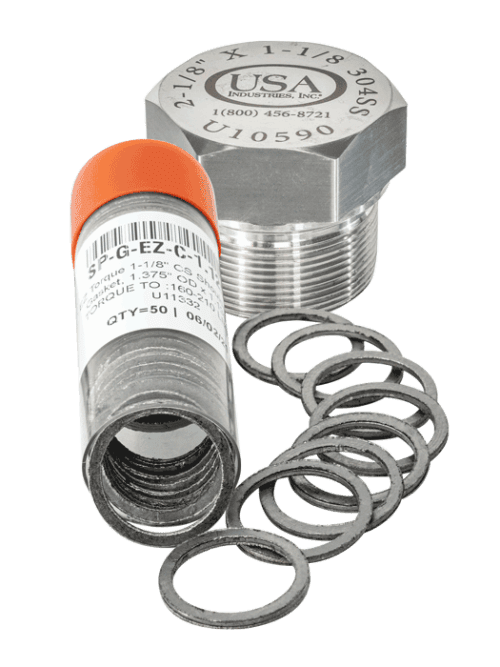

USA Industries designed the EZ Torque® Kammprofile Gasket (also called Camprofile Gasket) to provide a positive seal affected by less than half the installation torque required for traditional flat heat exchanger gaskets. The EZ Torque Kammprofile Gasket consists of a serrated metal core with a bonded layer of graphite on each surface. This construction allows for focused and distributed forces, greatly increasing the ability of the gasket to properly seal against surface imperfections, eliminating expensive re-machining costs, as well as requiring significantly less torque.
EZ TORQUE GASKET CUSTOMER TESTIMONIAL
"I can vouch for these gaskets. Since we started using these over the OEM, we have not had a start up leak on our fin fan exchangers."
M. Ferguson
EZ TORQUE KAMMPROFILE GASKET DESCRIPTION
Typical flat heat exchanger gaskets are notorious for inconsistent sealing and are often the source of unsafe and costly leaks. The EZ Torque Kammprofile Gasket ensures that you pass leak tests on the first attempt and lower the expense of downtime. As an operator continues to torque the flat gasket during installation of the header plug, the metal hardens, which decreases, and ultimately prevents, the gasket from yielding in thickness for a seal.
The load stresses caused by this over-torquing and strain-hardening phenomenon on your Fin-Fan® / air-cooled heat exchanger results in damage and deformation to the header box gasket surface, plug thread galling, and thread shear within the header box.
Greatly reduce unnecessary downtime and expensive problems with the EZ Torque® Gasket!
EZ Torque® Gasket Sizing Chart |
||||
|---|---|---|---|---|
| Typical Tube OD |
Typical Plug Diameter |
Typical UNF Thread |
Hex Size |
EZ Torque Gasket # |
| 5/8" | 3/4" | 16 | 1" | SP-G-EZ-0750*(-M) |
| 1" | 1 1/8" | 12 | 1 3/8" | SP-G-EZ-1125*(-M) |
| 1 1/4" | 1 3/8" | 12 | 1 5/8" | SP-G-EZ-1375*(-M) |
| 1 1/2" | 1 5/8" | 12 | 1 7/8" | SP-G-EZ-1625*(-M) |
| 2" | 2 1/8" | 12 | 2 3/8" | SP-G-EZ-2125*(-M) |
All sizes are typical and for use as reference. USA Industries can custom make your EZ Torque® header plug gaskets to any size or specification, and in any material you need! FIN-FAN is a Registered Trademark of Hudson Products Corporation
Website-Shoulder-Plugs-Stocked-Ready-to-Ship
USA Industries
Product Line Sheet
Frequently Asked Questions
We don't have a minimum quantity. We know sometimes you need 1 plug there tomorrow, and we're here to help! We do offer price breaks for larger quantities.
Yes! We make our gaskets and header plugs in house and can fill any size order for both of these.
No. The material anneal process is before the gasket is stamped out.
We're a custom machine shop as well as a manufacturer of piping accessories and tube plugs. We have all the resources neccessary to meet your needs for any custom specifications when making your gaskets.
Yes! Because we're the manufacturer, we can customize your gaskets to the exact specs you need, all without adding much lead time!
