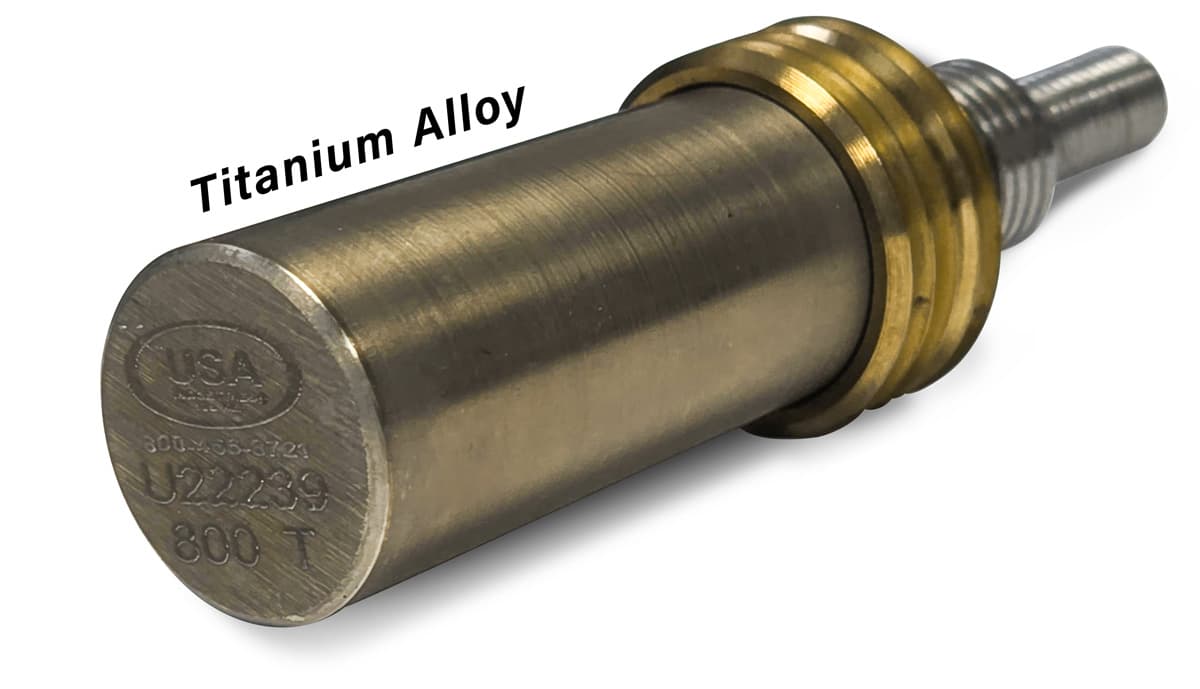

Heat Exchanger, Boiler & Condenser Tube Plugs

Snap It® Kit
Install & Removal Tools

Cut Your Delivery Time

FROM
WEEKS
TO DAYS!

See how fast we can deliver!

Product Overview

Snap It® Installation
& Removal Kit

Tools for Heat Exchangers, Boilers & Condensers

Snap It tube plugs install quickly and easily with our Installation and Removal Tool Kit — available in multiple sizes to buy or rent. Already have hydraulic rams, assemblies, or extenders? Snap It plugs are designed to work with your existing tools, saving you time and money.

Speed

Experienced users install plugs in 60 seconds or less — no removal of header boxes or channel heads required.

Compatibility

Designed to work with existing hydraulic rams, assemblies, and extenders — no need to replace your current tooling investment.

Eliminates Problems

Removes issues caused by hammer-driven or welded plugs — including safety risks, inconsistent installation, unpredictable pressure-holding capacity, tube sheet damage, and costly welding.

Availability

Available for rent or purchase — in-stock kits ship within 24 hours.

What It Eliminates

Safety risks from hammer-driven plug installation.
Inconsistent installation and unpredictable pressure-holding capacity.
Damage to tube sheets, holes, and tubes during installation.
Time-consuming and expensive welding costs and NDE requirements.

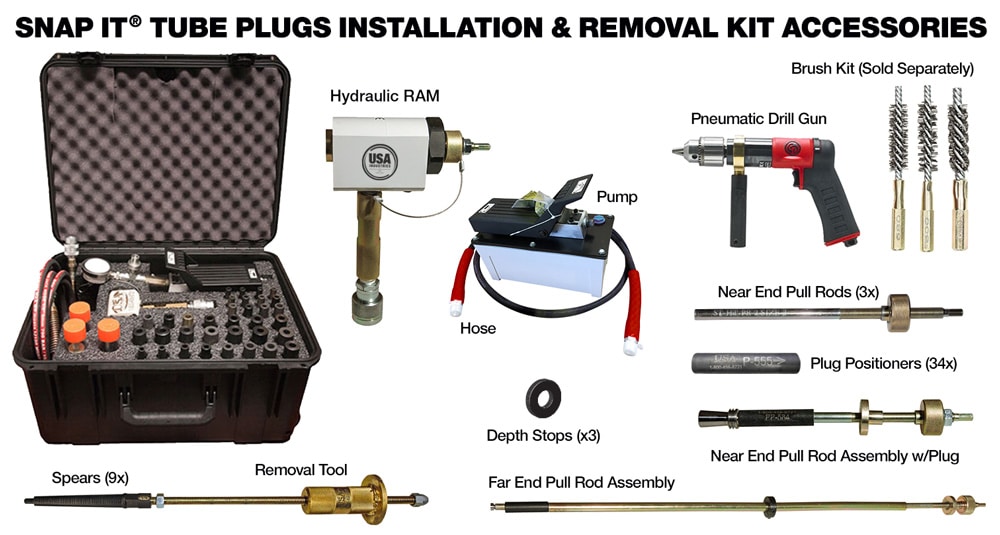

Kit Features

Tube Prep Tools

Installation Tools

Removal Tools

Jr. Plug Install Diagram

Sr. Plug Install Diagram

Installing Tube Plugs?

Tube Plug Accessories

Tube Preparation Tools

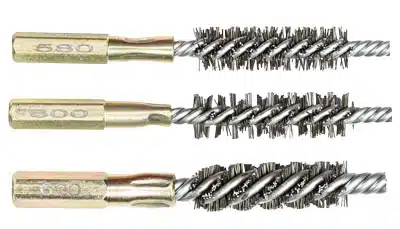

Brush Photo

Tube brushes are designed to properly prep heat exchanger tubes before installing a tube plug — removing pitting and corrosion from the tube interior to achieve optimum sealing and holding force.

Snap It Jr. — Kit Configuration

Because Snap It Jr. covers a range of tube sizes, brush kits include 3–4 brushes per kit. Select the smallest brush that effectively cleans and preps the tube surface.

Snap It Sr. — Exact-Size Brush

Snap It Sr. brushes are provided for the exact tube size ordered, ensuring a precise fit and consistent surface preparation every time.

Tube prep is absolutely critical — proper brushing is the most important step to achieving an optimal seal with your tube plugs.

Tube Plug Accessories

Installation Tools

Product Photo

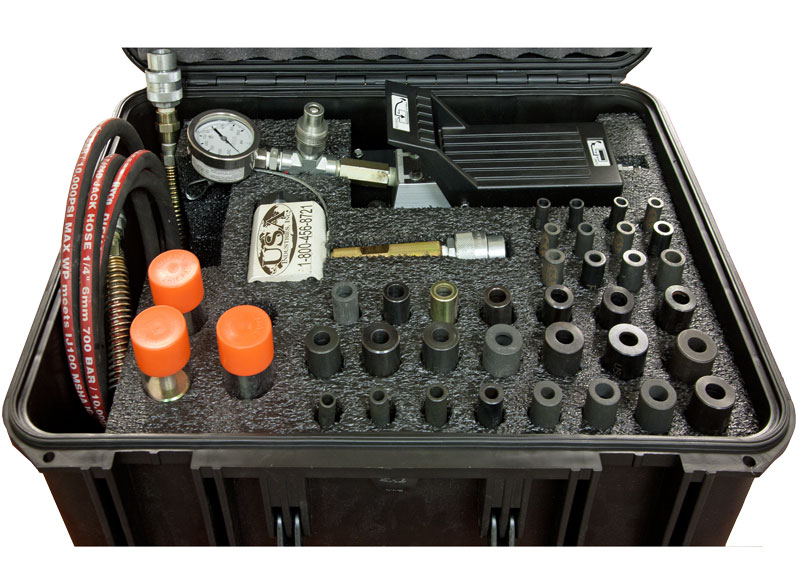

The hydraulic ram is the simplest, safest, quickest, and easiest way to install Snap It Sr. or Snap It Jr. tube plugs. Compact and lightweight at just 7 lbs, the air-driven pump requires 80–120 lbs of supply air @ 20 CFM and comes in a durable wheeled storage case with everything needed for near-end applications.

For far-end and through-tube applications, simply add the appropriate extension assemblies and a Channel Head Pull Rod Assembly (CHPRA) and follow the through-the-tube instructions.

Pull Rod Assembly

Used with the Hydraulic RAM to install the plug in place. Fully interchangeable with competitor systems and designed to minimize costs by utilizing multiple plug positioners with each pull rod size.

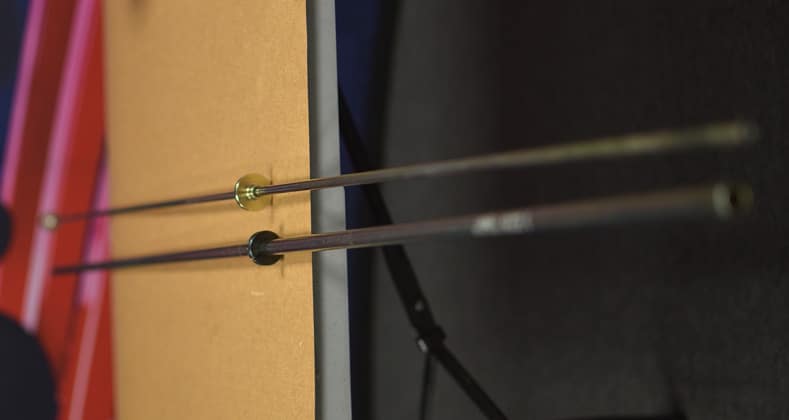

Channel Head Pull Rod Assemblies & Extension Sets

Used to operate the system and install plugs where channel heads are present. Also used in conjunction with extension sets for through-the-tube plugging.

Order the complete kit and go into your next turnaround with complete peace of mind.

Tube Plug Accessories

Removal Tools

Product Photo

Designed to quickly remove installed tube plugs without damage to the tube or tube sheet. The plug removal tool removes both the pin and ring in seconds — and if needed, a new plug can be reinstalled in the same location immediately after.

Screw the spear stud into the installed pin.

Use the slide hammer to dislodge the pin.

Screw the spear into the ring, then use the slide hammer to pull out all remaining pieces.

Contact USA Industries for sizing details and questions.

Tube Plug Accessories

One-Rev Internal Tube Cutter

1-Rev Internal Tube Cutter Product Photo

Puncture tubes before installation with USA Industries' One-Rev Internal Tube Cutter — a fast, precise tool engineered to work seamlessly with the Snap It tube plug system.

Punctures tubes in a single revolution

Designed for use before tube plug installation

Contact USA Industries for sizing details & questions — (800) 456-8721

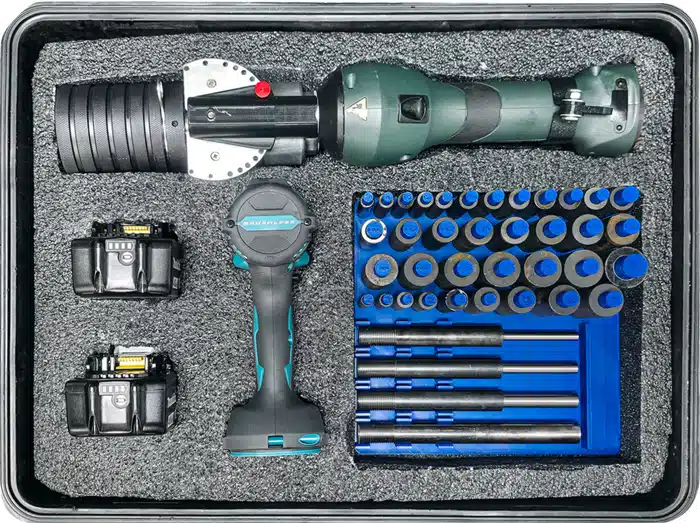

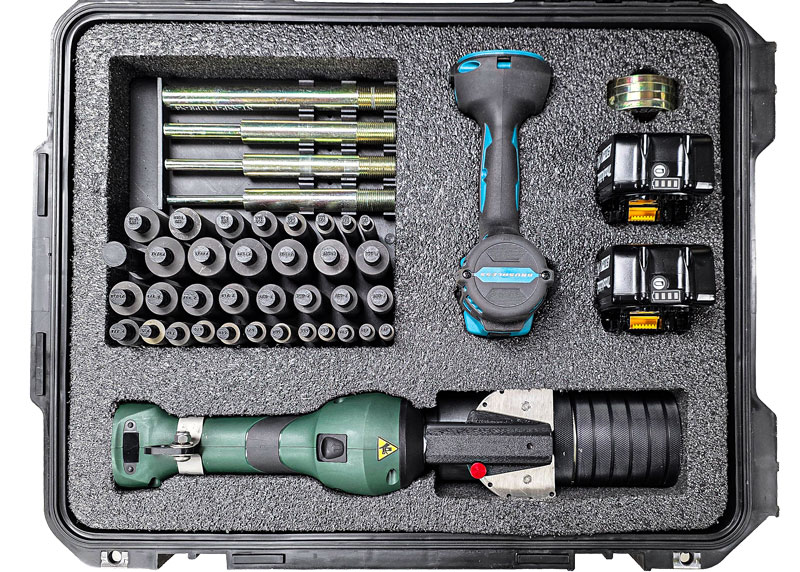

SureSnap Pro Snap It Kit - Overhead View

New Innovation

Coming Soon!

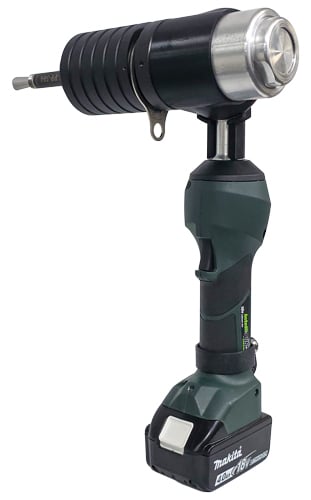

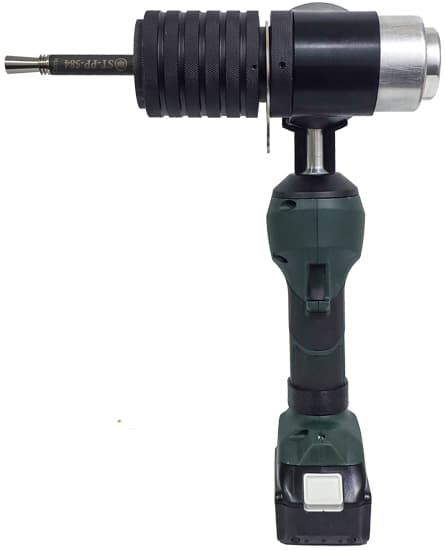

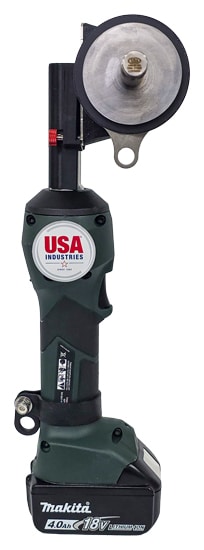

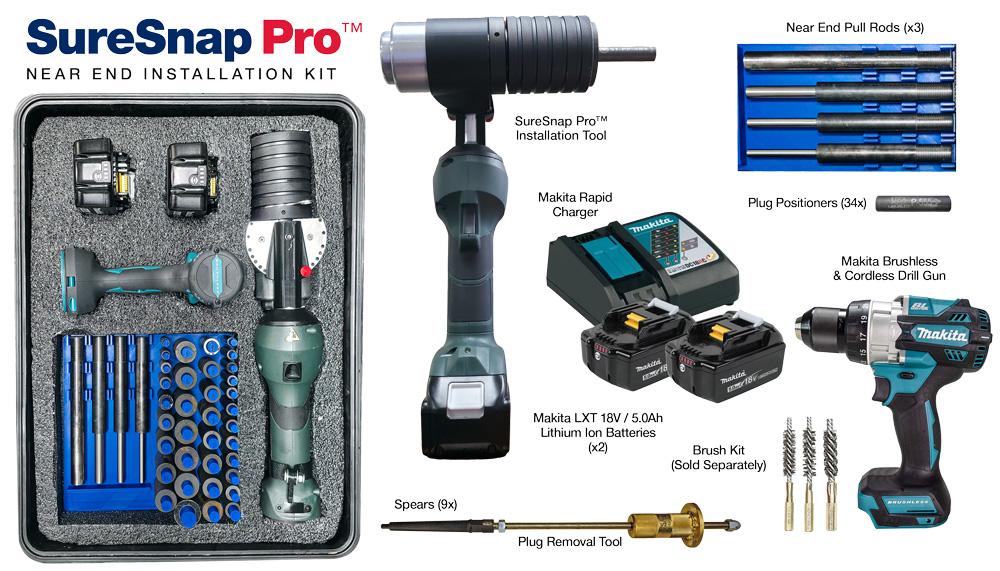

SureSnap™ Pro
Cordless Tool

USA Industries' latest innovation, built to install Snap It® Engineered Tube Plugs in heat exchangers, boilers, and condensers. This fully self-contained, battery-powered hydraulic unit eliminates shop air, external pumps, hoses, and electrical connections.

No cords. No hoses. No trip hazards.

Just reliable power, and greater safety when using USA Industries' SureSnap Pro tube plug installation tool.

Fully self-contained system — no plant air or electrical hookup required.
Eliminates hoses and trip hazards for safer, cleaner job sites.
Designed for ergonomic, single-handed operation in confined spaces, remote areas, and elevated work zones.
Adjustable Pull Head angle makes installation a snap in tight spaces where a straight-on approach isn't possible.
Premium aircraft-grade 7075-T6 aluminum press foot withstands repeated high-pressure cycles for long-lasting, reliable performance.
Unit includes a shoulder strap for improved ergonomics and reduced operator fatigue.
11.2 tons of operating force.
Enhanced 18v LXT / 4.0Ah lithium-ion battery for extended runtime.
Full charge in 40 minutes or less.
Recommended operating temperature range 5 °F to 122 °F (–15 °C to 50°C).
Integrated pressure sensor and automatic limit stop to prevent tool damage.
Install up to 400 tube plugs on a single charge.
Advanced digital display with performance data analysis via Bluetooth.
Reinforced housing engineered for harsh industrial environments.
Compact, ergonomic design — 5 lbs. (2.3 kg) with heavy-duty grip.
