Combining the Benefits of our EZ Vent & EZ Purge Slip Blinds into One Tool!
The EZ Vent-Purge slip blind combines the benefits of EZ Vent® and EZ Purge® into one tool! Purge the line safely during "Hot Work" using the Purge side, and then bleed and control pressure or fluids using the Vent side. This combo saves time and money by integrating these two useful blinds into a single tool.
USA Industries Blind Processing
Manufactured In-House
X
U.S. Produced Steel
X
PMI All Raw Materials
X
Waterjet & Plasma Cut Materials
X
Cut Deburring
X
QC Verified Cuts
X
Stamped with Blind Specs
X
Color-Coded by Class Rating
X
Painted (Carbon Steel)
X
Order Verification
X
Need Blind Storage?
EZ Vent-Purge Uses
Face, Gasket & Finish Types
When Ordering, Specify:
Protect Your ½"–14" Paddle Blinds with the Patented EZ Lock Blind Rack® — Safely Store 16" and Larger Paddle Blinds with the Stackable, EZ Store Storage Rack.
Rent or Buy the Patented EZ Lock Blind Rack from the Industry Leader in Blind Storage Solutions!
This video has audio. Tap the video to access controls and enable sound.
EZ VENT-PURGE PRODUCT USES
Multiple Ports can be added, venting one or both sides
Safer, quicker and easier than traditional practices
FOR EZ VENT SIDE:
Blocks flow on one side while allowing access to relieve or purge the other side.
Enhances downstream safety in case of a leaking valve upstream.
Easily verifies zero energy in the line and vents off leaked pressure for hydrotesting.
FOR EZ PURGE SIDE:
Creates a "standoff" area at the flange site for line purging.
Seals evenly, avoiding damage to the flange and gasket surfaces compared to outdated practices involving using makeshift spacers.

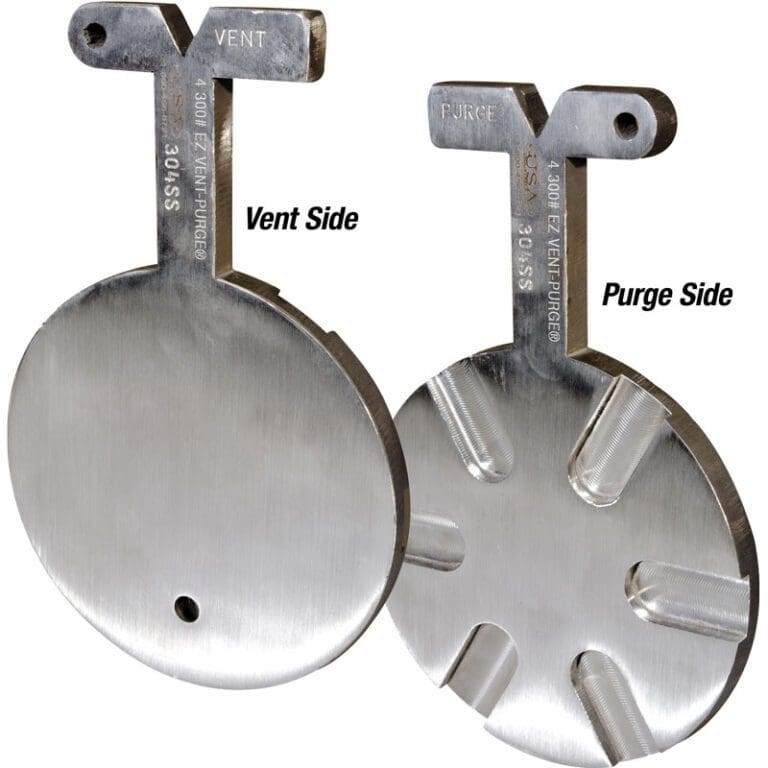

Our EZ Vent-Purge blinds are stamped with the line size, flange rating, and the word "VENT" on the vented side, and "PURGE" on the purge side.
How can I tell this is an EZ Vent-Purge blind?

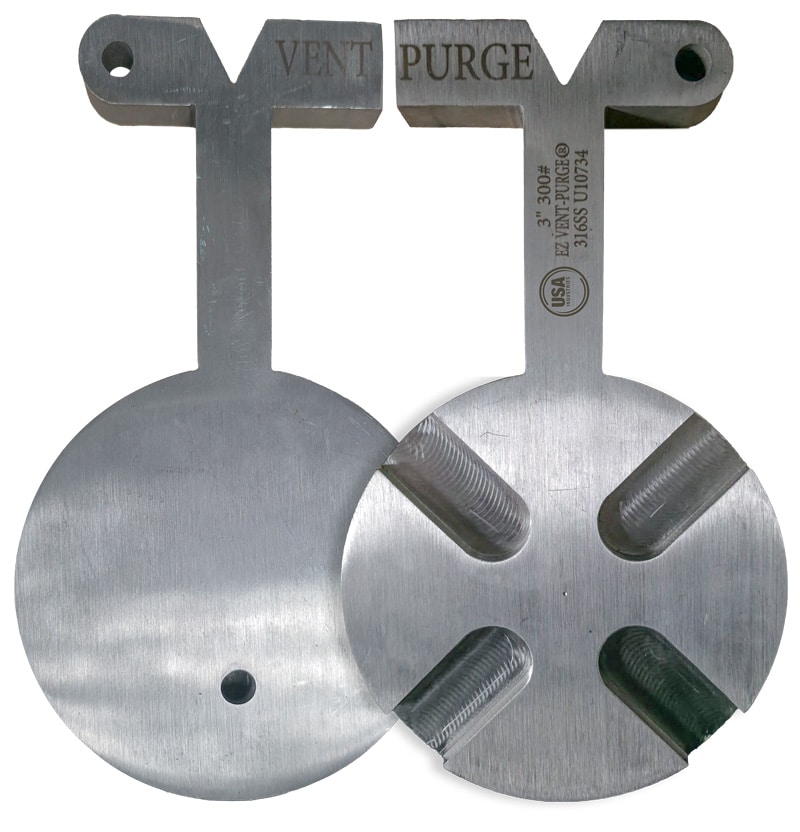

We have a special handle designating it is a vent-purge blind, it is a combination of a "V" notch in the middle and one edge of the top will be rounded with a hole in it forming the letter "P" when viewed from the "Purge" side.
Can I dictate the vent sizing, type, location and number of vents?
Yes! Let us know if you want an NPT or SW connection. Note: This may necessitate an increase of the blind thickness so your request can be accommodated.
Can I dictate the plate thickness?
Absolutely. As long as there is enough room to accommodate the vent sizes and the purge slots!
What is the standard plate thickness?
Our default thickness is a standard hydrotest thickness plus 1/4" for the purge channels. On smaller lines, because of the NPT, the thickness will be a minimum of 1/2".
Are machined finishes and RTJ (RJ) options available?
Yes. We can do both machined 125-250 rms finishes and RTJ male or female surfaces upon request.
What is the normal lead time for these?
Typically 1-2 days lead time, but it will depend on how many you need along with any special requirements you might have.
Is this a rental item?
They are available for either rental or purchase, depending on your needs. Some restrictions apply.
