Snap It® Sr. Engineered Tube Plug
Features
SNAP IT SR ENGINEERED TUBE PLUG FEATURES:
- Rated up to 7,000 PSID
- Blowout pressures exceed 28,000 PSID
- Materials: Stainless, Carbon Steel, Brass, Inconel, Titanium, and more
- ASME/ASTM certified materials
- Easy hydraulic installation

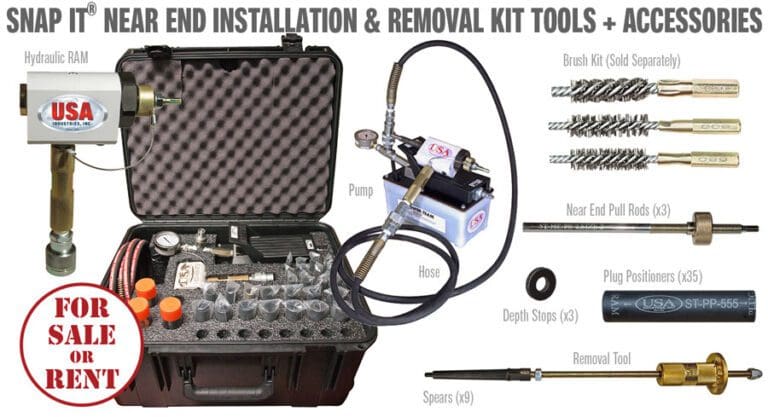

- Complete Snap It Tools Installation Kit available
- No tube sheet damage or welding required
- Up to 80% in labor cost savings
- ASME PCC-2 Compliant
- Comprehensive Lot Testing and Quality Assurance Standards
- In-stock items ship within 24 hours, and same day local delivery ability in Texas and Louisiana
The Snap It® Sr. Engineered Tube Plug, exclusively produced by USA Industries, provides a reliable, weld-free solution for high-pressure heat exchangers, with installation times up to 80% faster than conventional tapered plugs. Designed to protect the tube sheet's integrity, this plug can endure pressures of up to 7,000 PSID.
SNAP IT SR ENGINEERED TUBE PLUGS PROVIDE ENHANCED SAFETY MEASURES:

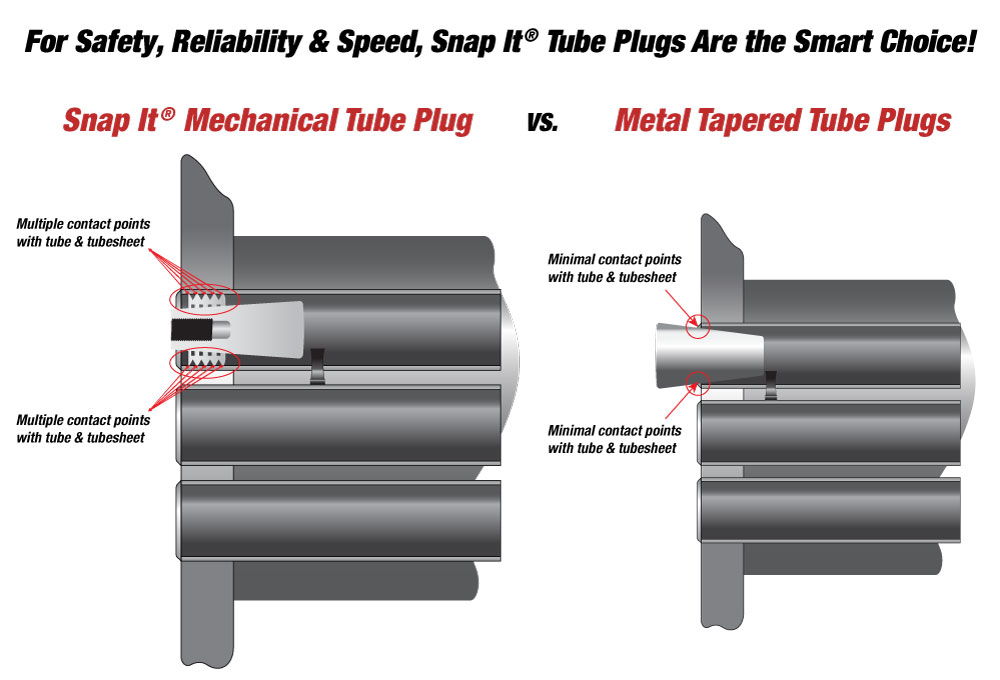

Snap It Sr. has been tested to withstand pressures exceeding 28,000 PSID, averting blowouts in fin-fan® / air-cooled heat exchangers. Eliminating the need for welding mitigates the risk of sparks igniting hazardous chemicals or fumes.
STREAMLINED INSTALLATION AND REDUCED COSTS:
Installed in under 60 seconds using a hydraulic ram, the plug establishes a robust seal, significantly reducing installation time, cutting down on maintenance labor expenses, and minimizing unit downtime. Installation and removal tooling are compatible with all systems, and equipment is available for rent or purchase at competitive prices. USA Industries guarantees a leak-free helium seal to 1 x 10-9 c/sec, ensuring the plug's reliability.
SNAP IT SR. ENGINEERED TUBE PLUGS ARE HIGHLY COST-EFFICIENT:
Although Snap It tube plugs may have a higher initial cost, customers realize long-term savings through reduced labor and decreased unit downtime, especially after the first application. The unique installation method prevents damage to tube sheets and ligaments, thus circumventing costly maintenance interruptions. Moreover, when used in tubular reactors, it substantially reduces reloading durations.
Snap It Sr. Size to Pressure Ratings Chart
| Tube ID Range | Pressure Rating | ||
|---|---|---|---|
| 0.400 - 0.680 | = | 7,000 PSID | |
| 0.700 - 0.960 | = | 4,500 PSID | |
| 0.980 - 2.000 | = | 2,000 PSID | |
Find Your Snap It Sr Part #
Due to limited range in Snap It Sr plugs, we strongly suggest you mic each tube before ordering.
Don't see the material you want? Call us! We make plugs out 20+ different materials.
SR-
Pull Rod Assembly:
PRA-
Channel Head Pull Rod:
CHPRA-
Brush Kit:
SRA-
Plug Positioner:
PP-
|
Tube Plug Part #:
|
| Plug Part # | Tube ID Range | Brush Kit | Plug Rod Assembly | Channel Head Pull Rod | ||||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | |||||||
| SR-400-X | 0.401" - 0.420" | 10.16 - 10.68 | SRA-400-LD* | PRA-400 | CHPRA-Z-I | CHPRA-400-I | ||
| SR-420-X | 0.421" - 0.440" | 10.69 - 11.19 | SRA-420-LD* | PRA-420 | CHPRA-420-I | |||
| SR-440-X | 0.441" - 0.460" | 11.20 - 11.70 | SRA-440-LD* | PRA-440 | CHPRA-440-I | |||
| SR-460-X | 0.461" - 0.480" | 11.71 - 12.21 | SRA-460-LD* | PRA-460 | CHPRA-460-I | |||
| SR-480-X | 0.481" - 0.500" | 12.22 - 12.72 | SRA-480-LD* | PRA-480 | CHPRA-480-I | |||
| SR-500-X | 0.501" - 0.520" | 12.73 - 13.22 | SRA-500-LD* | PRA-500 | CHPRA-500-I | |||
| SR-520-X | 0.521" - 0.540" | 13.23 - 13.73 | SRA-520-LD* | PRA-520 | CHPRA-520-I | |||
| SR-540-X | 0.541" - 0.560" | 13.74 - 14.24 | SRA-540-LD* | PRA-540 | CHPRA-540-I | |||
| SR-560-X | 0.561" - 0.580" | 14.25 - 14.75 | SRA-560-LD* | PRA-560 | CHPRA-560-I | |||
| SR-580-X | 0.581" - 0.600" | 14.76 - 15.26 | SRA-580-LD* | PRA-580 | CHPRA-580-I | |||
| SR-600-X | 0.601" - 0.620" | 15.27 - 15.76 | SRA-600-LD* | PRA-600 | CHPRA-Z-II | CHPRA-600-II | ||
| SR-620-X | 0.621" - 0.640" | 15.77 - 16.27 | SRA-620-LD* | PRA-620 | CHPRA-620-II | |||
| SR-640-X | 0.641" - 0.660" | 16.28 - 16.78 | SRA-640-LD* | PRA-640 | CHPRA-640-II | |||
| SR-660-X | 0.661" - 0.680" | 16.79 - 17.27 | SRA-660-LD* | PRA-660 | CHPRA-660-II | |||
| SR-680-X | 0.681" - 0.700" | 17.28 - 17.79 | SRA-680-LD* | PRA-680 | CHPRA-680-II | |||
| SR-700-X | 0.701" - 0.720" | 17.80 - 18.30 | SRA-700-LD* | PRA-700 | CHPRA-700-II | |||
| SR-720-X | 0.721" - 0.740" | 18.31 - 18.81 | SRA-720-LD* | PRA-720 | CHPRA-720-II | |||
| SR-740-X | 0.741" - 0.760" | 18.82 - 19.32 | SRA-740-LD* | PRA-740 | CHPRA-740-II | |||
| SR-760-X | 0.761" - 0.780" | 19.33 - 19.83 | SRA-760-LD* | PRA-760 | CHPRA-760-II | |||
| SR-780-X | 0.781" - 0.800" | 19.84 - 20.34 | SRA-780-LD* | PRA-780 | CHPRA-780-II | |||
| SR-800-X | 0.801" - 0.820" | 20.35 - 20.84 | SRA-800-LD* | PRA-800 | CHPRA-800-II | |||
| SR-820-X | 0.821" - 0.840" | 20.85 - 21.35 | SRA-820-LD* | PRA-820 | CHPRA-820-II | |||
| SR-840-X | 0.841" - 0.860" | 21.36 - 21.86 | SRA-840-LD* | PRA-840 | CHPRA-840-II | |||
| SR-860-X | 0.861" - 0.880" | 21.87 - 22.37 | SRA-860-LD* | PRA-860 | CHPRA-860-II | |||
| SR-880-X | 0.881" - 0.900" | 22.38 - 22.87 | SRA-880-LD* | PRA-880 | CHPRA-Z-III | CHPRA-880-III | ||
| SR-900-X | 0.901" - 0.920" | 22.88 - 23.38 | SRA-900-LD* | PRA-900 | CHPRA-900-III | |||
| SR-920-X | 0.921" - 0.940" | 23.39 - 23.87 | SRA-920-LD* | PRA-920 | CHPRA-920-III | |||
| SR-940-X | 0.941" - 0.960" | 23.88 - 24.40 | SRA-940-LD* | PRA-940 | CHPRA-940-III | |||
| SR-960-X | 0.961" - 0.980" | 24.41 - 24.89 | SRA-960-LD* | PRA-960 | CHPRA-960-III | |||
| SR-980-X | 0.981" - 1.000" | 24.90 - 25.40 | SRA-980-LD* | PRA-980 | CHPRA-980-III | |||
| SR-1000-X | 1.001" - 1.020" | 25.41 - 25.91 | SRA-1000-LD* | PRA-1000 | CHPRA-1000-III | |||
| SR-1020-X | 1.021" - 1.040" | 25.92 - 26.42 | SRA-1020-LD* | PRA-1020 | CHPRA-1020-III | |||
| SR-1040-X | 1.041" - 1.060" | 26.43 - 26.92 | SRA-1040-LD* | PRA-1040 | CHPRA-1040-III | |||
| SR-1060-X | 1.061" - 1.080" | 26.93 - 27.43 | SRA-1060-LD* | PRA-1060 | CHPRA-1060-III | |||
| SR-1080-X | 1.081" - 1.100" | 27.44 - 27.94 | SRA-1080-LD* | PRA-1080 | CHPRA-1080-III | |||
| SR-1100-X | 1.101" - 1.120" | 27.95 - 28.45 | SRA-1100-LD* | PRA-1100 | CHPRA-1100-III | |||
| SR-1120-X | 1.121" - 1.140" | 28.46 - 28.96 | SRA-1120-LD* | PRA-1120 | CHPRA-1120-III | |||
| SR-1140-X | 1.141" - 1.160" | 28.97 - 29.46 | SRA-1140-LD* | PRA-1140 | CHPRA-1140-III | |||
| SR-1160-X | 1.161" - 1.180" | 29.47 - 29.97 | SRA-1160-LD* | PRA-1160 | CHPRA-1160-III | |||
(S) 316 SS (J) 70/30 CuNi (K) 90/10 CuNi (B) Brass (C) Carbon Steel (Y) Chrome/Moly (H) Hastelloy (I) Inconel (M) Monel (N) Nickel 200 (T) Titanium (Z) Zirconium
Any material available upon request!
Tube preparation brushes are required for use with Snap It® Sr Plugs.
Standard Sr kit includes 10 plugs, 1 brush and 1 go/no go gauge. Upon request, plugs and items can be ordered invidually.
"*" - Brush and go/no go gauge furnisehd with every 10 plugs.
"*" - For brass, copper, or copper nickel tubes please add the suffix -LD to the brush kit.
"Z" - Channel head pull rod assemblies and extension assemblies are available in 2', 4' or 6' lengths.
FIN-FAN is a Registered Trademark of Hudson Products Corporation
*ASME PCC-2 stands for the American Society of Mechanical Engineers (ASME) Post Construction Committee 2. It is a standard developed to provide guidelines and procedures for the repair of pressure equipment, including vessels, piping, and related components, after they have been constructed and put into service. ASME PCC-2 covers various aspects of repair, including design, fabrication, inspection, and testing, and it offers recommendations for both temporary and permanent repairs depending on the situation. The standard is widely used in industries where pressure equipment is prevalent, such as petrochemical, oil and gas, power generation, and manufacturing.
- Tube I.D.
- Material Type (ie., Carbon Steel, Stainless - 316, Brass, Inconel, etc.)
- Maximum Temperature and Pressure
- Type of Tube or Tube Sheet Joint (Rolled, Welded, etc.)
- # of Brush Kits Required

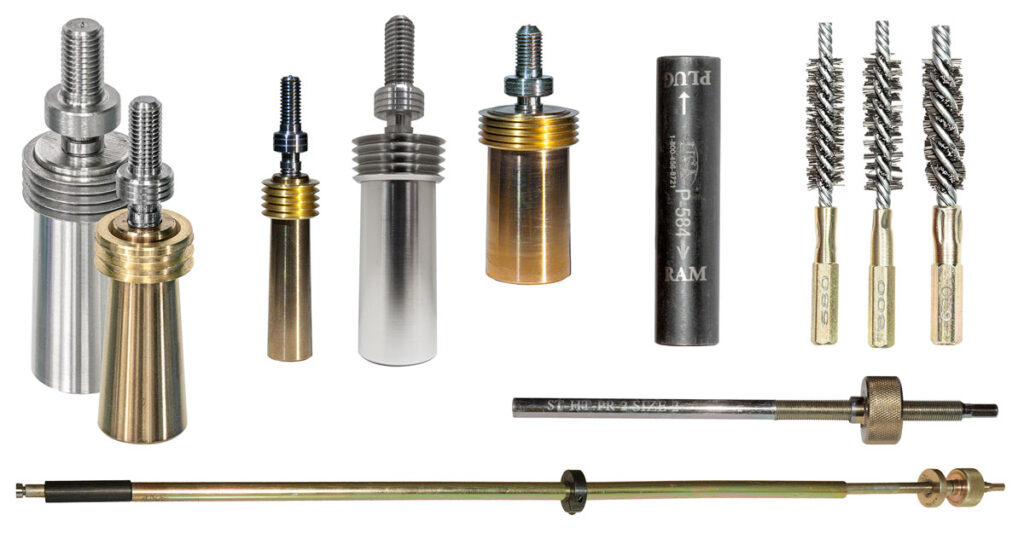

- If Required - Pull Rod, Channel Head Pull Rod or Plug Positioner
- Quantity Needed
- Necessary Delivery Date
Snap It Plugs must be installed exclusively within the rolled section of the tubesheet. If the tubes are not rolled into the tubesheet, contact USA Industries at 1-888-299-2155 for guidance before proceeding further. Before installation, eliminate any scale and pitting using USA Industries’ Snap It Brushes. Additionally, ensure that any weld droop is removed prior to plug installation.
Product Information Downloads
Snap It® Plug, Tools & Accessories Video Training Series
Scroll Down Webpage to Snap It Training Videos Heading
Frequently Asked Questions
The Snap It Sr. tube plug is rated up to 7,000 lbs. of pressure, but with our independent testing, we've seen blowout pressures that exceed 28,000 PSID.
We will make your Snap It tube plug in any exotic or standard metal. The most commonly requested materials include: 70/30 CuNi, 90/10 CuNi, Brass, Carbon Steel, Chrome/Moly, Hastelloy, Inconel, Monel, Nickel 200, Stainless Steel (316 and 304), Titanium, Zirconium and more.
We sell our Snap It plugs in sleeves of 10. There is no maximum. We have the capabilities to produce 5,000 plugs daily, and have more than 500,000 tube plugs of all varieties in stock at all times. Even custom orders, can typically be manufactured and shipped extremely quickly!
These plugs don't require welding, completely removing the risk of a spark igniting dangerous fumes or chemicals.
We strongly suggest never standing in front of an installed tube plug, but Snap It tube plugs, with proper installation, have been independently verified to keep from blowing out at pressures exceeding 28,000 PSID.

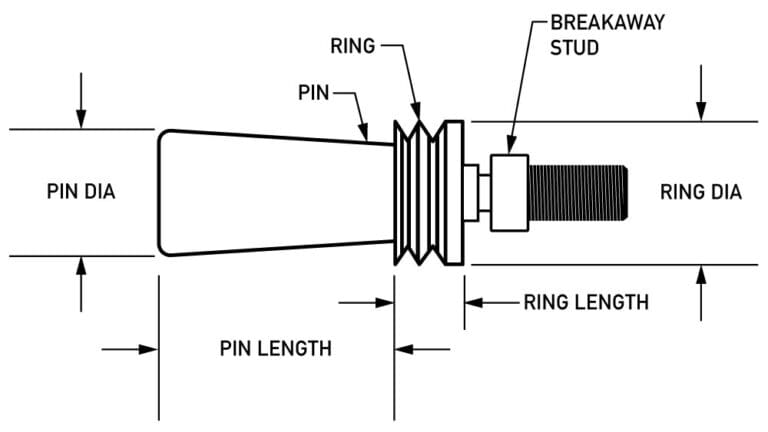

Snap It Sr. has five points of contact and Snap It Jr has three. This means that Senior plugs have a much stronger seal (up to 7,000 PSID) and Junior plugs have more flexibility to expand to different size tubes.
Both Snap It Sr. and Snap It Jr. tube plugs require some tools for installation and removal. We strongly suggest using tube brushes to clean and prep your tubes, then installation is a breeze. Our hydraulic ram and pull rod assemblies provide consistent, controlled intallation, eliminating the hazards of tapered and welded plugs, as well as tube and tube sheet damage.
Once you've installed a few Snap Its, you'll find it takes less than 60 seconds to prep and install these tube plugs. Now you can skip welding, and save up to 80% in labor costs with a quick and consistent installation process!
Our Snap It Tube Plugs require ZERO proprietary pieces of equipment to install. Don't get locked into expensive equipment issues after your purchase. Call us and we can confirm your existing tools will work with ours. If not we offer short-term rental and purchase for installation tooling.
Yes, we sell directly to end-users, as well as other contractors and suppliers.
We design, engineer, manufacture, test, and package Snap It Plugs at our facility in South Houston, Texas, and we ship anywhere in the world. As the manufacturer, we are uniquely qualified to provide technical support, certification training, and customizations to meet your specific needs.
Our customers experience competitive pricing and short lead times by dealing directly with USA Industries.
No, Snap It Sr. Tube Plugs are used for "near end" applications only. Because the Snap It Sr plug is designed for higher pressure-holding capabilities, it is unable to expand more than .020". Due to the minimal expansion, this plug is not small enough to travel through the tube for proper installation within the far-side tube sheet.
